How to enable the constraints of tangent line tool?

- February 12, 2024 at 6:42 pm

  felipefreiredecarvalho
  Subscriber

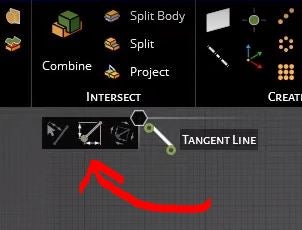

  I'm trying enable 3 constraints inside of tangent line tool, what I need to make to enable they?
- February 13, 2024 at 7:20 am

  Atharv Joshi
  Ansys Employee

  Hi Felipe,
  Let me check this and get back to you.
  Thanks and Regards
  Atharv
- February 13, 2024 at 3:25 pm

  felipefreiredecarvalho
  Subscriber

  Hi Atharv,
  it's ok, thanks for support
- February 13, 2024 at 3:28 pm

  Atharv Joshi
  Ansys Employee

  Hi Felipe,
  Which version are you using in the screenshot, did you see this option in any of the videos?
  Unfortunately, I don’t see any such options in the latest versions of the software.
  Thanks and Regards
  Atharv
- February 13, 2024 at 5:41 pm

  felipefreiredecarvalho
  Subscriber

  Student Version 2023 R2
- March 10, 2024 at 9:51 am

  debabratadassbp767
  Subscriber

  Hi Felipe

  Have you fixed the problem of finding that constraint?
- March 18, 2024 at 9:47 am

  Atharv Joshi
  Ansys Employee

  Hi Felipe,
  Click F1 and activate the overlay for guiance on the tool.
  What exact constraints are you trying to set?
  Thanks and Regards
  Atharv
- March 19, 2024 at 2:26 am

  felipefreiredecarvalho
  Subscriber

  Hi Debabrata Das, I didn't try yet, but I downloaded the latest version and probably on next weekend I’II install it.
  Thanks for support.
- March 19, 2024 at 2:33 am

  felipefreiredecarvalho
  Subscriber

  Hi Atharv Joshi, Oh nice, I'II install the latest version, but before I'll try this method.
  Thanks for support.
  Regards.
- March 25, 2024 at 1:05 am

  felipefreiredecarvalho
  Subscriber

  Hi Atharv Joshi, how are you?
  Sorry, I didn't observe your question, I'm trying to apply a restriction in a Robotic Arm this class (https://www.youtube.com/watch?v=08of8OxR2BE&t=2s) on minute 04:00 of video, the instructor created a tangent restriction on circle, but I could not because that problem.
  Regards.
- March 26, 2024 at 9:55 am

  Atharv Joshi
  Ansys Employee

  Hi Felipe,
  Thanks for sharing the video. I will check this and let you know.
  Regards
  Atharv
- March 28, 2024 at 1:12 pm

  Atharv Joshi
  Ansys Employee

  Hi Felipe,
  In this video the instructor is using the Change Angle feature with the reference construction line.
  You can perform the same operations using Dimension Tool from Design Tab while sketching.
  First add the diameter for circle as shown.
  Select the tangnet and construction line to add the angular dimension as per drawing.
  Later on you can use "Create Corner" to extend the tangnet line to the edge.

  Thanks and Regards
  Atharv
