Hi, I'm simulating the motion of a floating wind turbine structure, and I want to plot the sequence for the hydrodynamic response animation, but I can't find a .SEQ file to plot the animation. what is the solution to this problem?

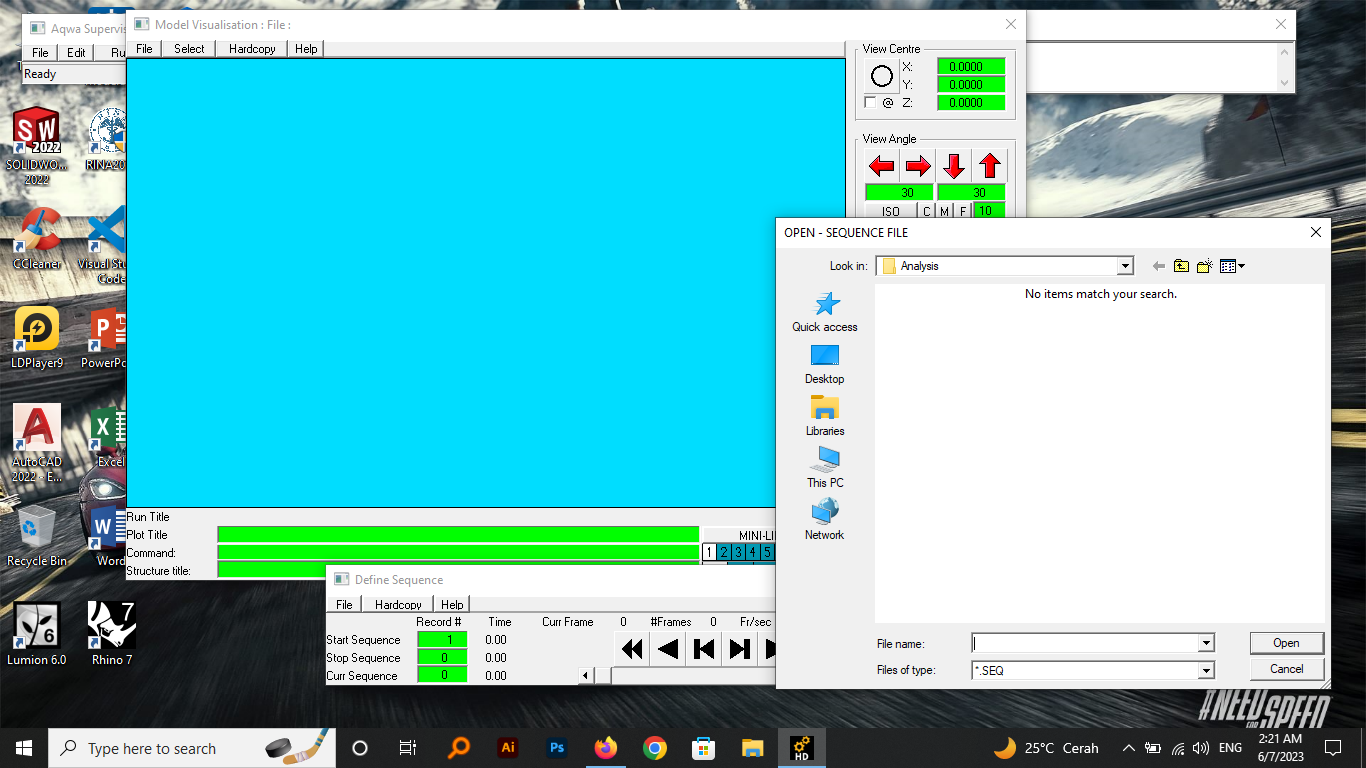

I want to open the .SEQ file, but in the workbench folder that I saved, the file isn't there. is there any special steps i have to do to create this .SEQ file

thank you

[Mike Pettit]

Hello,

Aqwa Workbench does not create an SEQ file - this can only be created by AqwaGS. If you would like to play the animation in AqwaGS, you should:

• File > Open the RES file for the time domain analysis
• Click Plots on the main toolbar
• In the Plots window, click Select > Sequence
• In the Sequence window, click the 'RECORD Every' checkbox to start the animation.

I hope this helps.

Mike

[Nurhalim Dwi Putra]

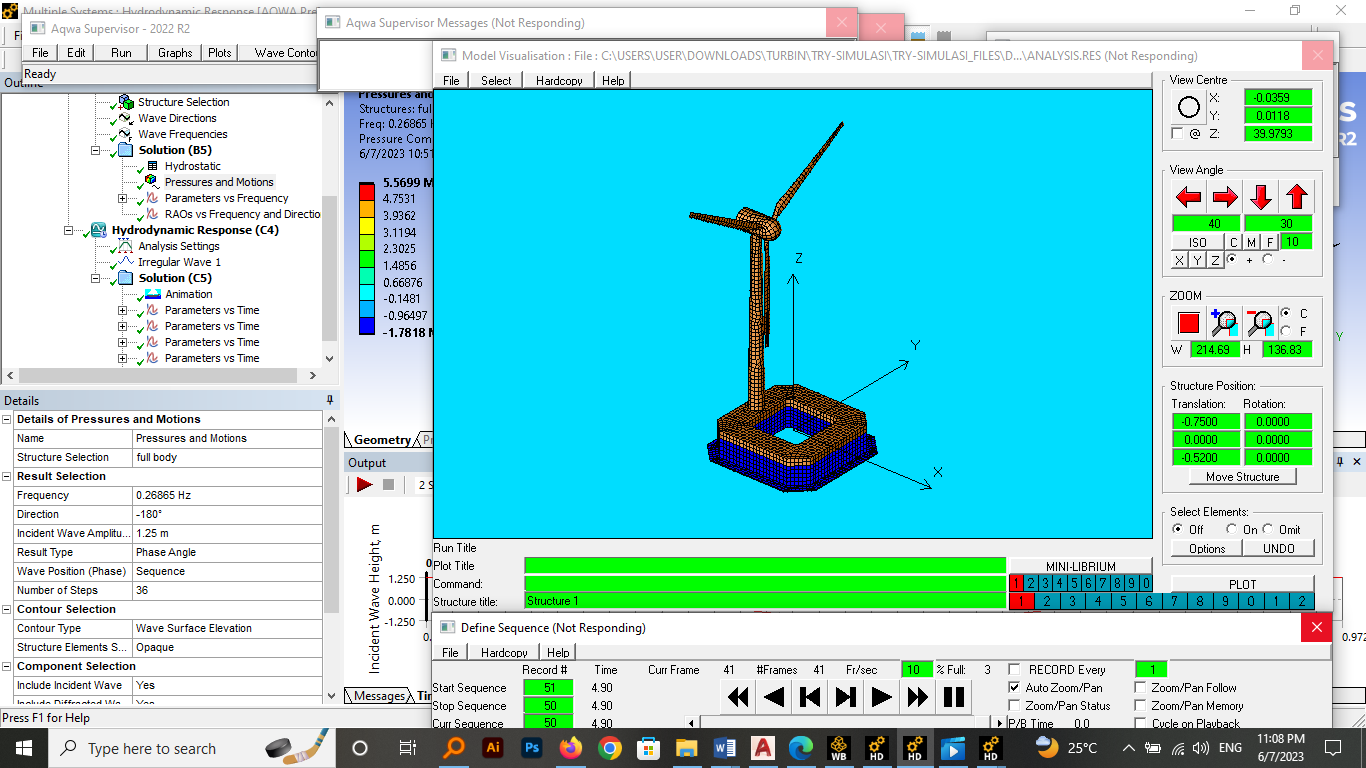

thank you for your help, by pressing the "record every" check box directly, and it has done the recording, but, I just noticed, the waveform in the preview screen doesn't appear and the structure doesn't move. did I have to display the waveform first, after that I pressed "Record every", how do I do that?



[Mike Pettit]

To show the waves: in the Plots window click Select > Options, and in the Select Plot Options window click the 'Waves' and 'Spectra' checkboxes. Then the wave surface should also be displayed in the Plots window and also in the animation.
