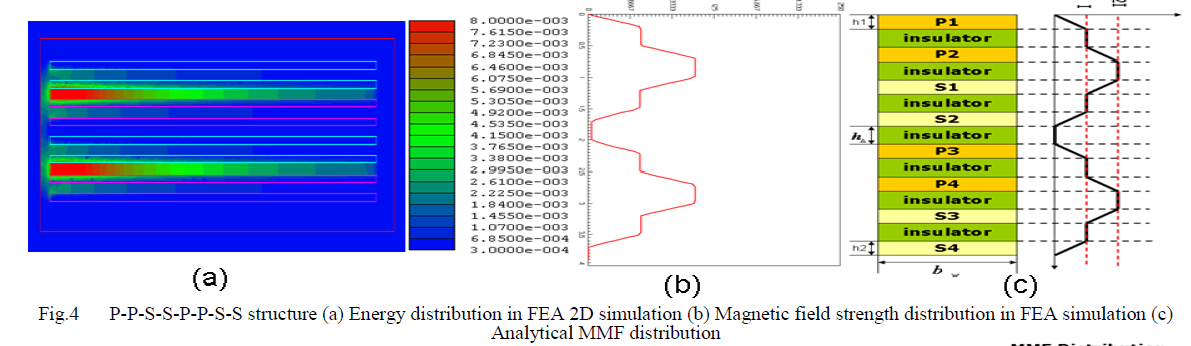

I saw this paper and I want to know how to plot this mmf plot of transformer winding. I tried plotting Mag_B along a polyline that is parallel to the z-axis but I'm not getting the expected result. It's has offset to from zero.

[NKC]

Hi @dizcolee I have access to neither the paper nor do I know what you have modeled is.
The screenshot is not showing what the units are for the plot (b).
Please check the following.
1) does the field plot of your model match with the one given in the paper.
2) Make sure what the paper is calling Magnetic strength is what you are plotting.
You need to verify every parameter(including the model) to match with the paper then only the results can match.
Regards Navya
