(HFSS) Surface Current on Microstrip Shows Impossible Current outside of Trace
-
-
Hello,
I am modeling a curved microstrip using HFSS and when I plot surface current, Ansys shows current that extends outside the curved portion of my trace. What could this be from?
-

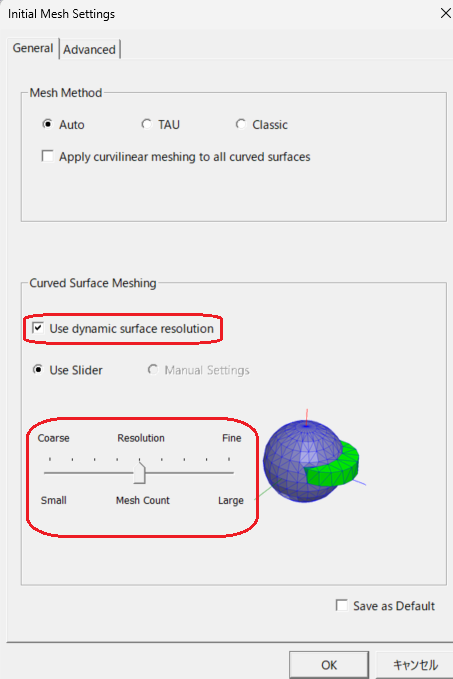

This is likely due to poor mesh generation on arcs and curved surfaces. Delete the analysis results and re-analyze, then select HFSS > Mesh > Initial Mesh Settings... and check Use dynamic surface resolution.
If this does not work, move the slider bar to Fine and re-analyze.
-
Viewing 1 reply thread
