  3. Frequency Response: Damping as Parameter Frequency Graph as Output

Frequency Response: Damping as Parameter Frequency Graph as Output

    • March 30, 2020 at 8:22 am
      bjarne321
      Subscriber

      Is there a way to output the frequency responce graph for different damping ratios with a parameter set? I am not just interested in the maximum amplitude but in the amplitude values for the whole frequency range and the resulting graph:

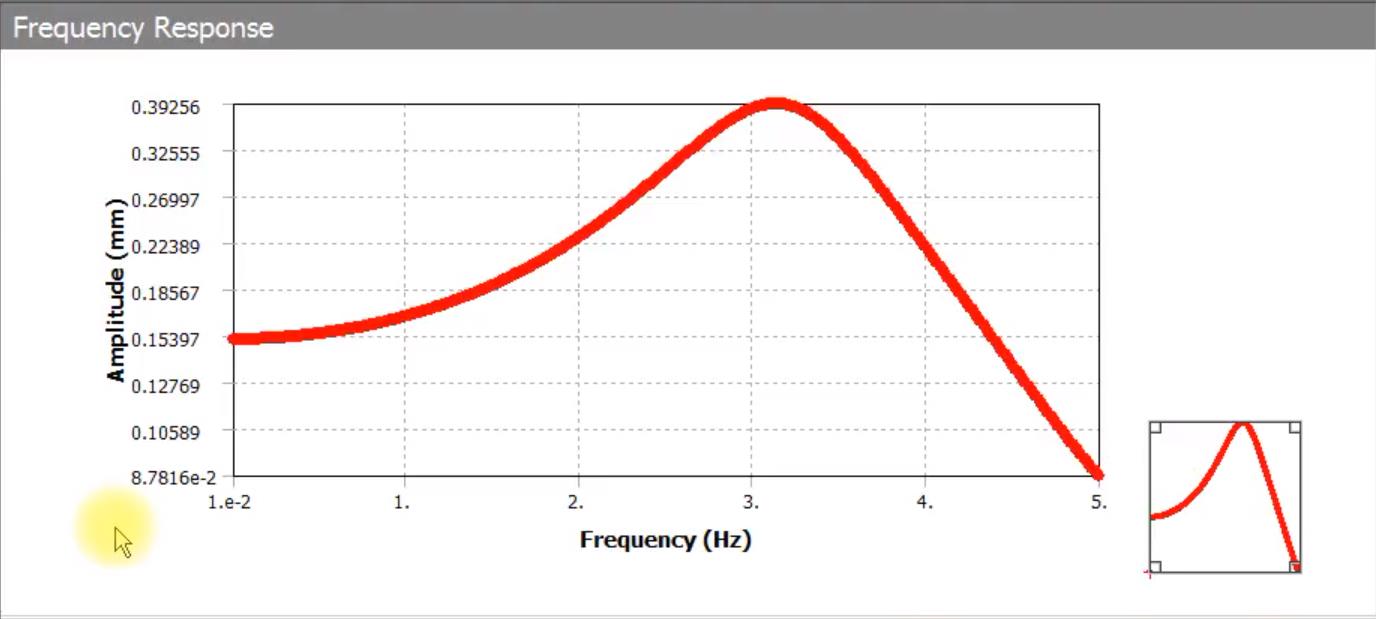

      wanted output for different damping values


      The basic concept is provided by Peter:


      https://www.youtube.com/watch?v=PACA-2-IyEc&lc=z23oubqbbzznyver404t1aokg31jsaen5qajkscptsqxrk0h00410.1584844090781872


      @peteroznewman


      Thanks 4 your help!

    • November 19, 2020 at 11:05 pm
      Laurentiomoto
      Subscriber
      IM looking for this answer as well!nn
Viewing 1 reply thread
  • The topic ‘Frequency Response: Damping as Parameter Frequency Graph as Output’ is closed to new replies.
