Fluid Flow – Lid Driven Cavity
-
-

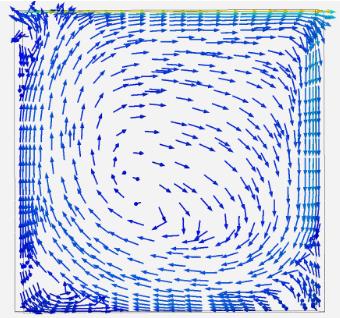

A cube shaped cavity is filled with water while subjected to a moving lid at a constant velocity which creates rotating recirculation areas in the fluid. This tutorial uses ANSYS AIM to plot the velocity vectors and pressure contours inside the cavity. See the attached file for a tutorial on this problem.
-
