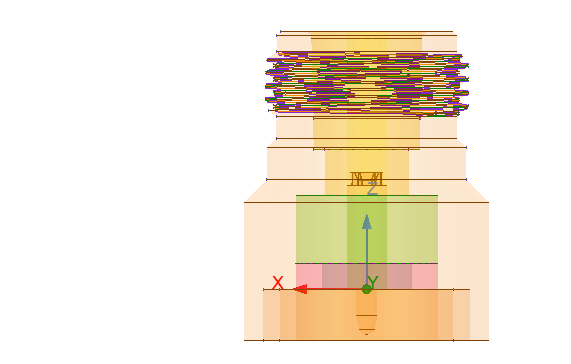

Extract high quality model images from HFSS?

    • February 4, 2022 at 7:39 am
      imtiazshuvo10
      Subscriber
    • February 7, 2022 at 1:25 pm
      Chinmay T
      Forum Moderator

      To get a high-quality model image please go to the "Modeler tab -> Export" in AEDT.
      In the export file option, you can choose the graphic file formats like .png, .jpg etc. and in the image export option select the image size and save it.
      Please refer ÔÇ£Exporting Graphics FilesÔÇØ section from HFSS Help document.
      Thanks Chinmay
Viewing 1 reply thread
  • The topic ‘Extract high quality model images from HFSS?’ is closed to new replies.
