Hi, everyone:

I'm drawing a coil with rectangle cross section in Maxwell, I didn't import the CAD model since I need the coil be parametered.

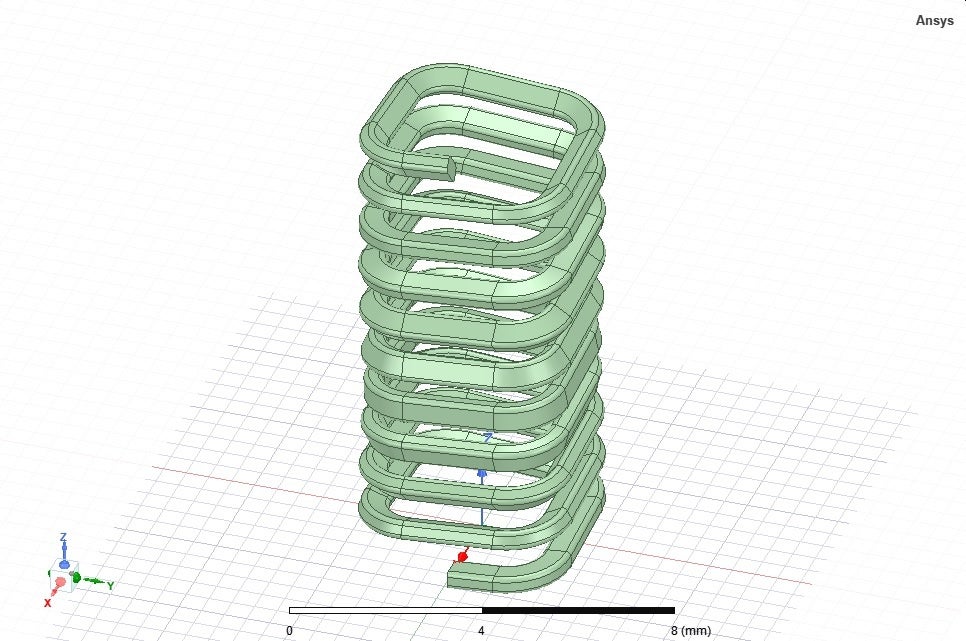

I used "sweep along path", while the coil "twisted" with non-regular pattern as the pictures below.

Is there any way to build a coil which each layer of sections are aligned or parallel?

Thanks!

[NKC]

you can use the inbuilt UDP operation for this.

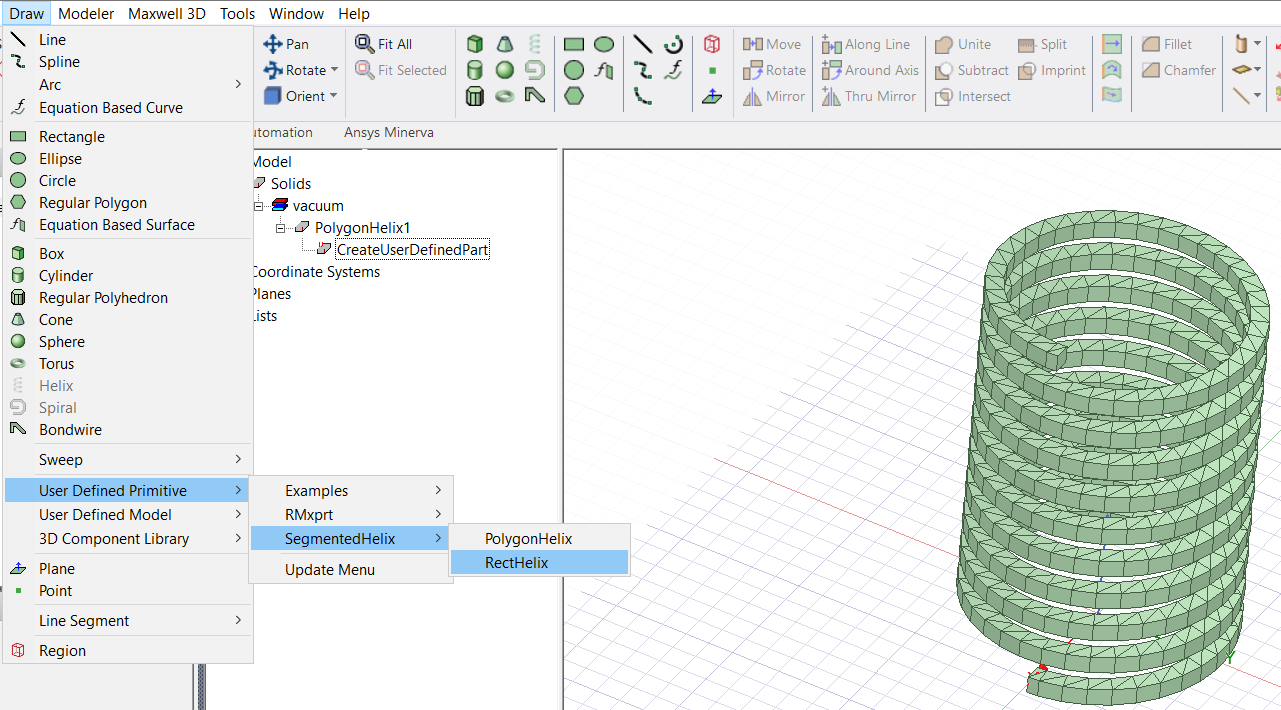

See the below screenshot. After you select the rectangular helix you will see a popup window with variables. You can enter the values as needed and click OK.

Regards Navya
