Draping error in ACP Pre

TAGGED:
    • August 19, 2022 at 5:25 pm
      me20b141
      Subscriber

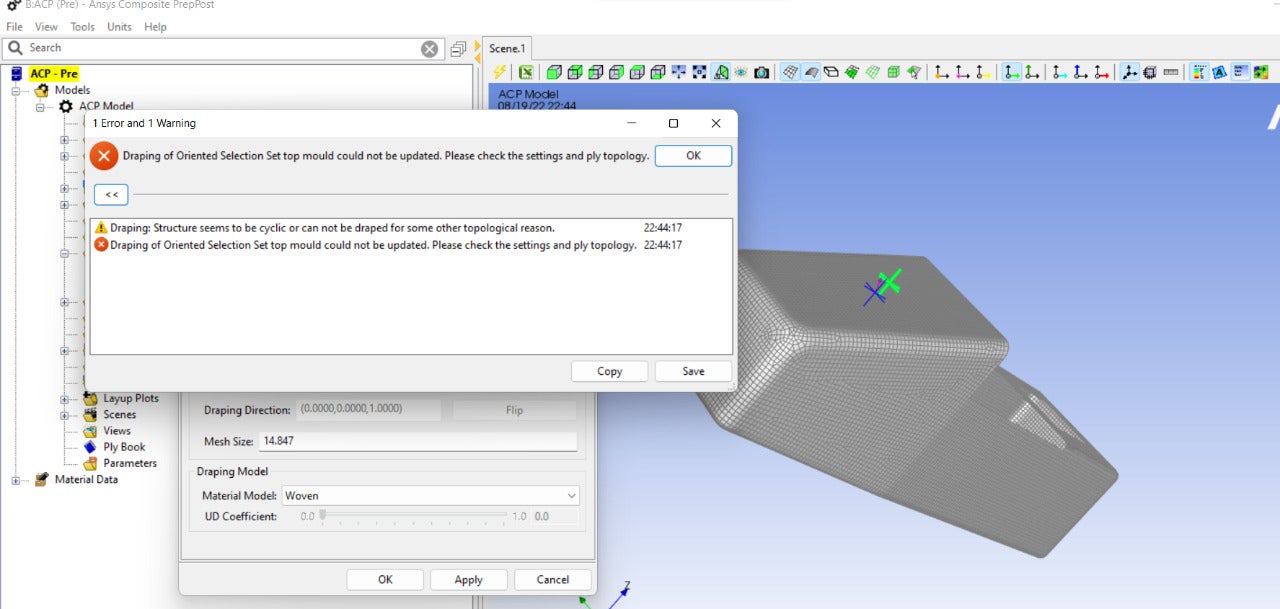

      I want to account for fillets in the model i am working with in acp pre and tried using the draping option in the properties bar of oriented selection sets. But I get the following error even though my fillets look normal to me. Can someone help me with what this error exactly is and how to fix it? the oss top mould simply consists of the upper half of the model

    • August 23, 2022 at 1:49 pm
      Ashish Khemka
      Forum Moderator

      Hi,



      Please see if the following discussion helps you:



      Draping Error while creating an blade of composite material (ansys.com)



      Regards,

      Ashish Khemka

      • August 24, 2022 at 6:43 pm
        me20b141
        Subscriber

        This discussion and dividing my model into more moulds helped! Thanks a lot!

        Regards,
        Raaed Shajihan
