Hi everyone

Is it possible to get two different Gap values for the contact side and target side in a simulation. I am doing a structural simulation and getting a gap value of -1.006 mm for the contact side and 0.00138 mm for the target side.

Kind regards

Subhav Goel

[Akshay Maniyar]

Hi subhav,

Could you provide a few screenshots of the problem you're having so that it can be easy understood?

Thanks,

Akshay Maniyar

[Subhav]



Hi Akshay

thanks for your response, please find the screenshots below

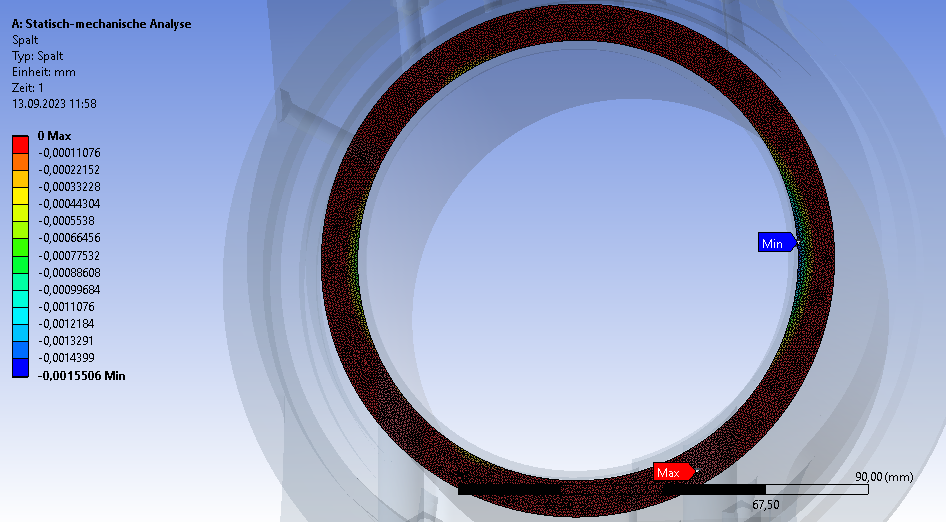

Gap at the target side

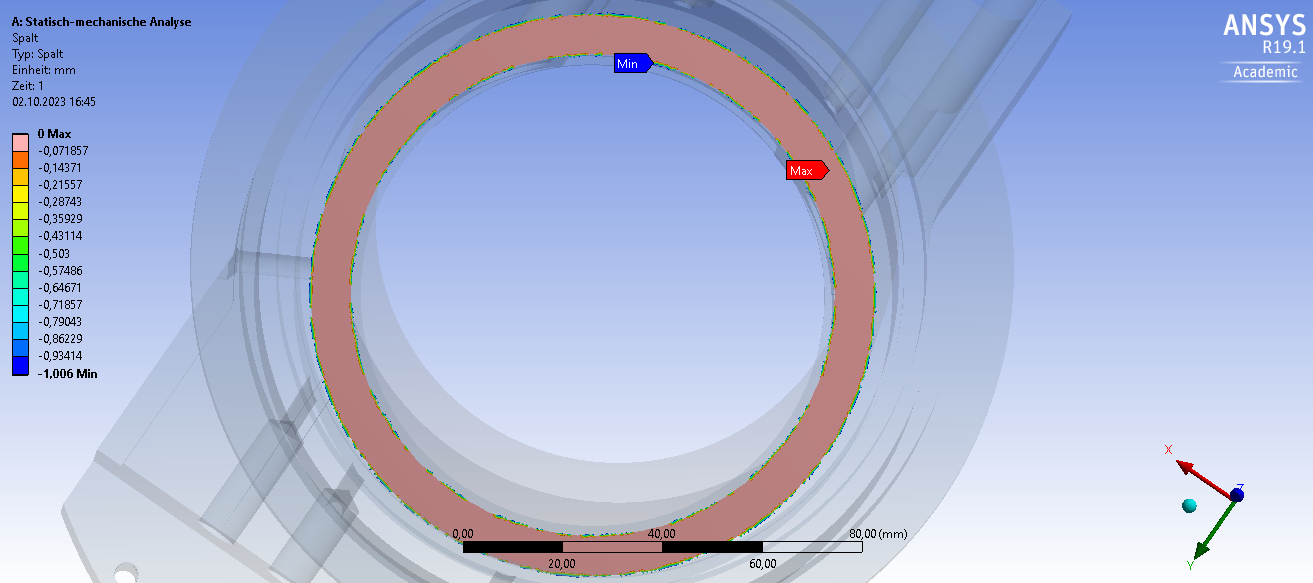

Gap at the contact side

Kind regards

Subhav



[Akshay Maniyar]

Hi Subhav,

Can you share the screenshot of the contact settings you are using? Are you using a contact tool to calculate the gap results?

Thanks,

Akshay Maniyar



[Subhav]

Hi Akshay

I am using the contact tool in the solution tab

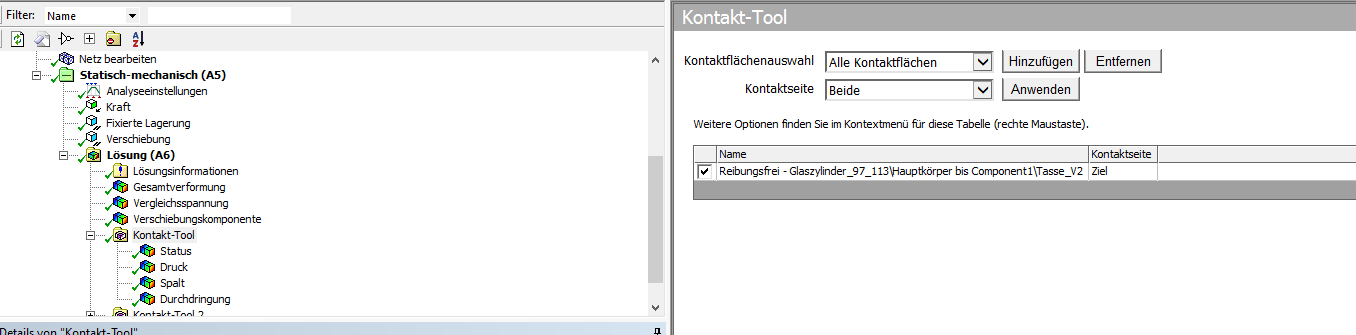

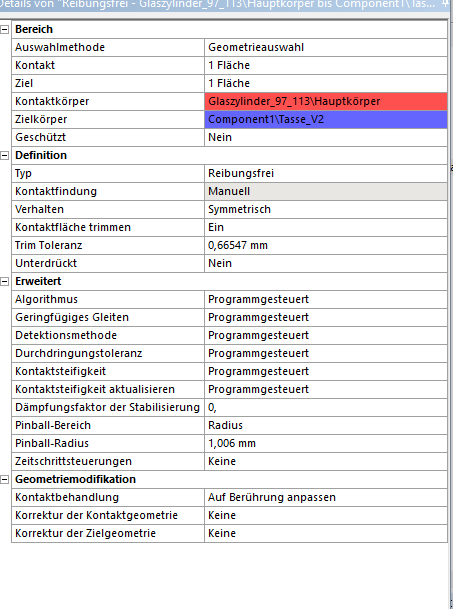

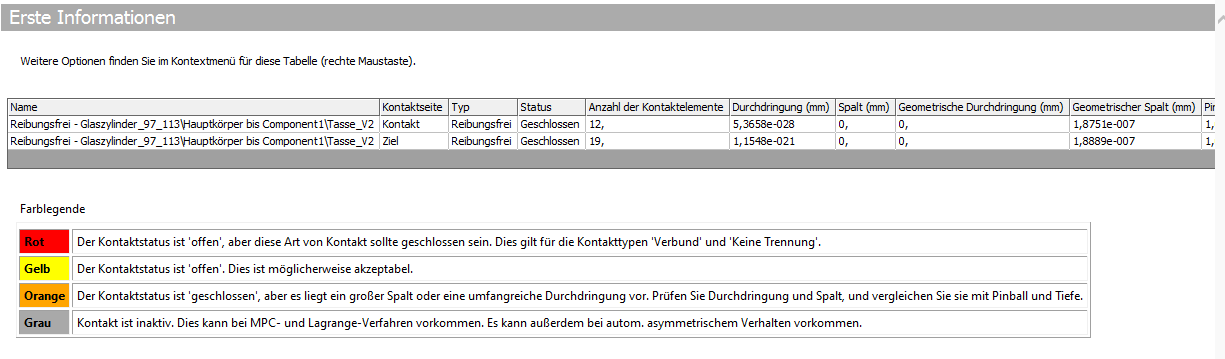

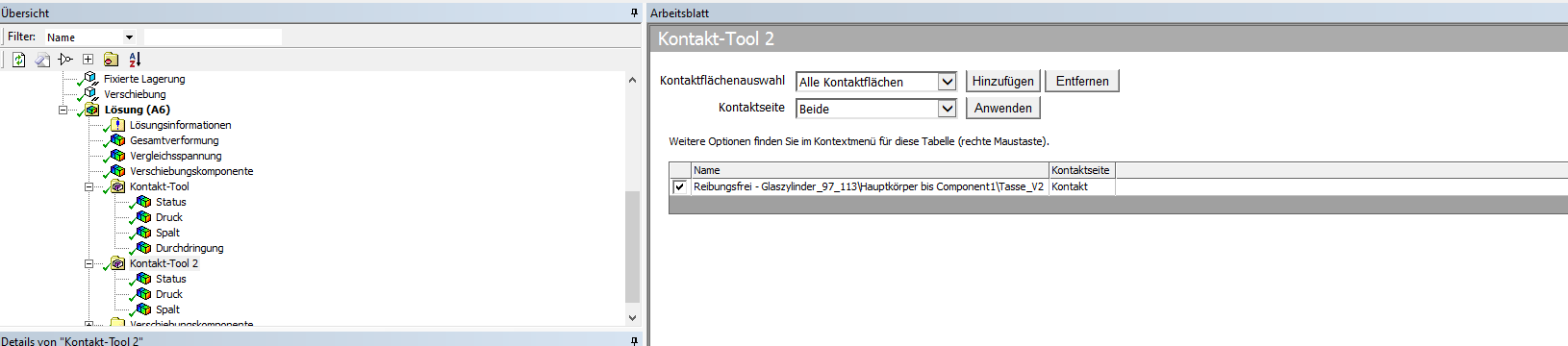

Please find the screenshots for all of them attached below:



Since the screenshots are in German here are some translations for your ease:

Reibungsfrei - frictionless

Ziel - Target

Geschlossen - closed

Kind regards

Subhav Goel



[Akshay Maniyar]

Hi Subhav,

Sorry for the delay. It looks like you have used interface treatment as 'Adjust to touch' which is causing the issue. Try to use 'Add offset, no ramping' or 'Add offset, ramped effect' and then check the results.

Please check the below Ansys help for more details.

Geometric Modification (ansys.com)

Thanks,

Akshay maniyar
