Data Exchange PDF

- March 7, 2022 at 10:42 am

  Guillaume ANFOSSI
  Subscriber

  Hello,

  Is the module Data Exchange PDF used by SpaceClaim Engineer still available with the new versions of ANSYS SpaceClaim?
- March 7, 2022 at 10:54 am

  subashni.satish
  Forum Moderator

  Hello GUICAD

  I'm not quite sure I understand your query correctly.

  Can you please explain what you mean by data exchange pdf?
  - March 7, 2022 at 11:01 am

    Guillaume ANFOSSI
    Subscriber

    Subashni

    in previous versions of SpaceClaim Engineer, a module allowed to export a 3D PDF file keeping the geometry as it is without getting facets.

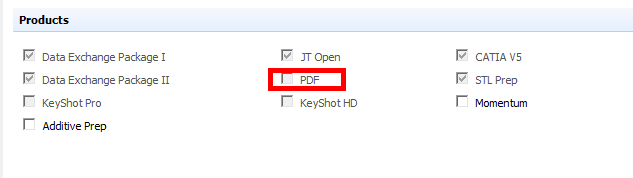

    Here is a capture of the options where this module was accessible
- April 6, 2022 at 12:00 pm

  subashni.satish
  Forum Moderator

  Hello GUICAD

  You can simply Save As > PDF Facets, the resulting file will be a 3D PDF. In SC Options > File Options > PDF, you can change the format of imported 3D PDFs (facets, solid/surface body).
