Create deformed geometry and compare deformed geometry with original

- February 15, 2020 at 8:42 am

  Hiren369
  Subscriber

  I have done static structural using ansys student version workbench in which i have given temperature to one material..and total 3 materials are deformed by that...
  Now i have to compare my deformed part with original part..how to measure dimensions of deformed part.
- February 16, 2020 at 3:17 am

  peteroznewman
  Subscriber

  Use a Deformation plot. That will color code the amount of deformation relative to the original undeformed geometry.
- February 17, 2020 at 8:02 am

  Hiren369
  Subscriber

  i have to superimpose two original geometry with deformed. so how i can export deformed geometry
- February 17, 2020 at 6:36 pm

  parkersheaffer
  Subscriber

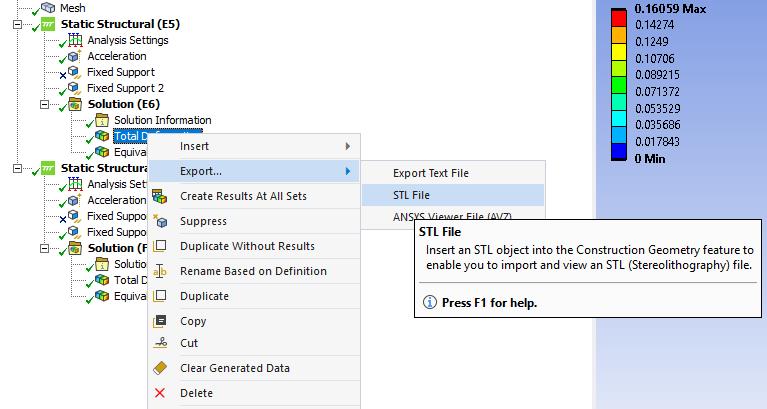

  You can export the deformed geometry as an stl.
