Characteristic Mode Analysis (CMA)

- February 28, 2019 at 11:43 am

  Kanan
  Subscriber

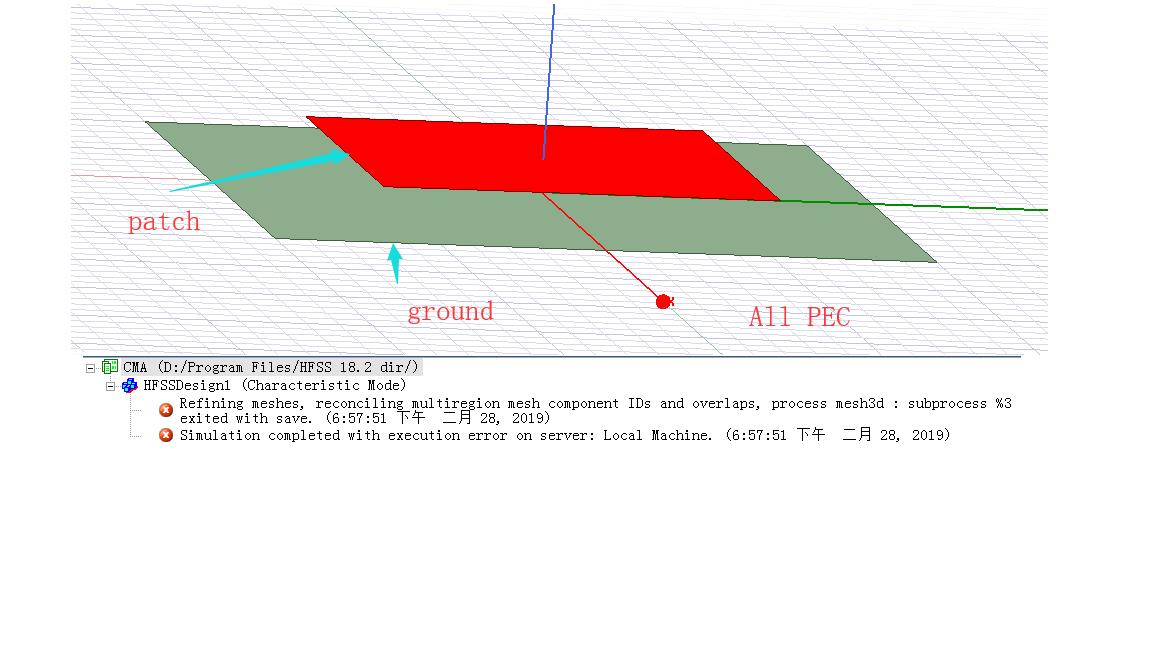

  Hello wonderful members, I'm trying to use the characteristic mode Analysis (CMA)....in HFSS 18.2. but there is error in simulation. please find attached the model and the error.Help me out.

  .

  EDIT - moved
- March 19, 2019 at 3:19 am

  Sorceress Gia
  Ansys Employee

  It appears there's another object oriented along the Z-axis that's intersecting the patch? Can you upload more screenshots that include different views of the model along with the project and modeler tree with each listing in the tree expanded?
