Hi, currently i'm working on design piezoelectric energy harvester. The problem is i cannot see the voltage result even though i already write command and everything.i used piezo and mems extension. I'm very newbie to this simulation. and the command i write did not appear on worksheet eg: D,ground,VOLT,0. Please help me ASAP. Due date for this project is in this week



[MaiRabie]

Hello,

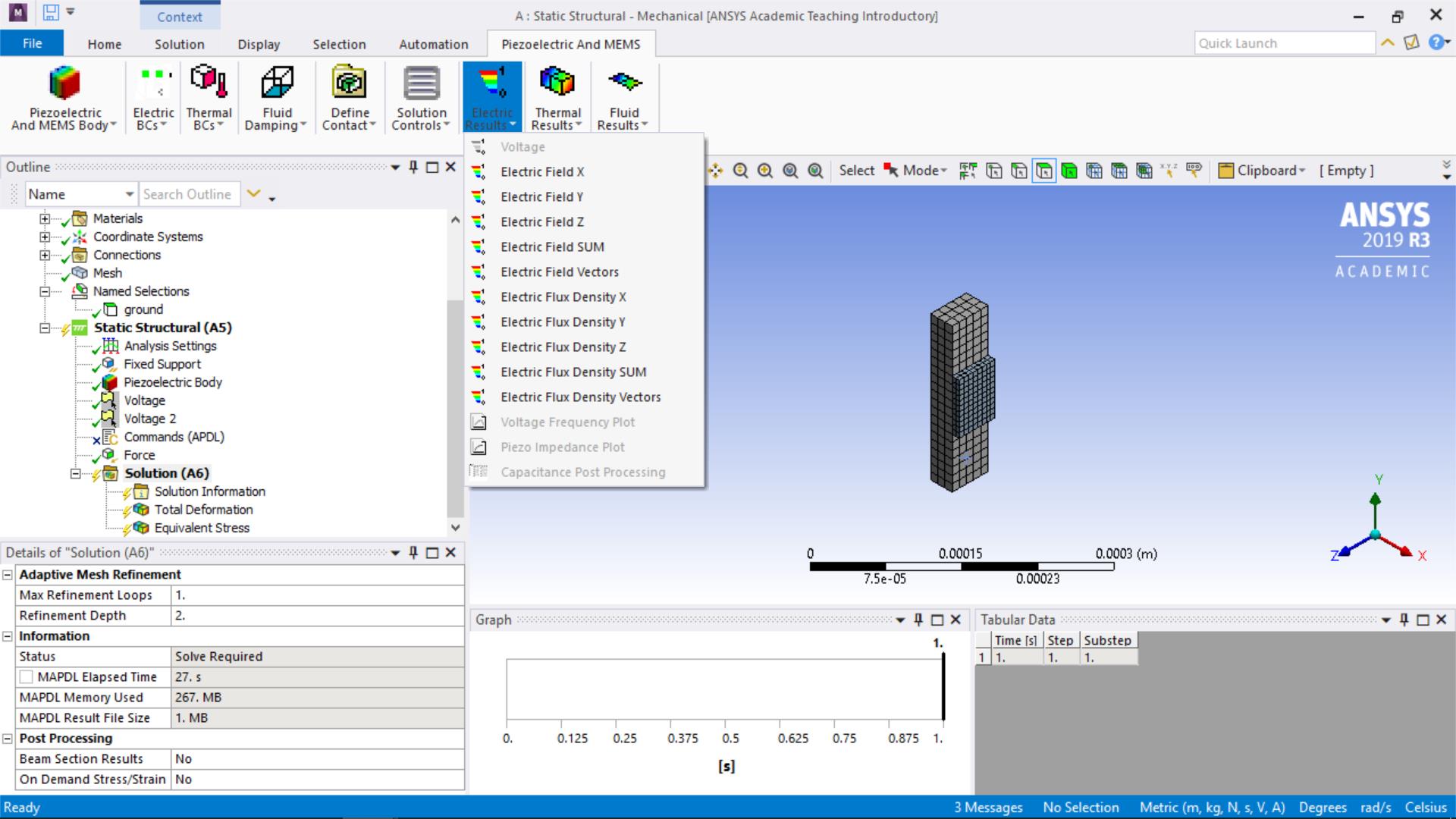

try to click on solutions under harmonic analysis, then from home tab choose worksheet, then click on available solution quantities

There you will find volt you can right click on it and choose find create user defined. It shall be created under the solutions and from there you can choose the desired part to find your voltage.

I hope this will help

Good Luck

Mai Ismail

[hirai1496]

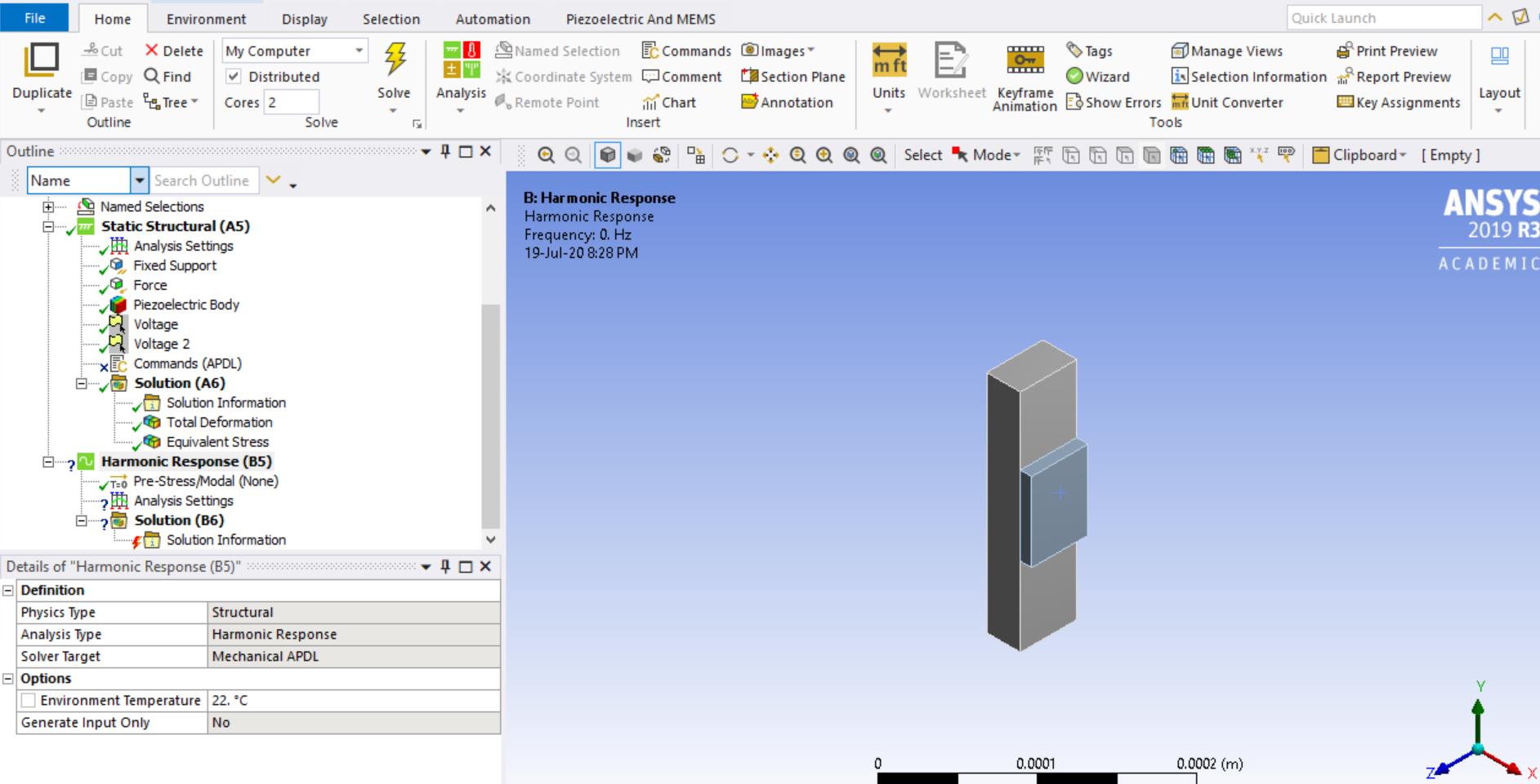

Hi. i already did what you told me but its not working. i cannot click the worksheet icon. it turns grey.

if possible can u kindly solve my problem if i share my ansys file?

[NIRANJANA A NAIR]

even I had the same problem, it was because I hadn't given a proper insulation

[Erik Kostson]

This old post is now closed.

For reference use Coupled field (static, harmonic or transient) to do piezoelectric analysis (can be done with or without acoustics and structures).

See the help manual for more info on these systems.
