I cannot seem to control the bend edge location any more.

Is this an issue related to Windows 11 update?



[Devendra Badgujar]

Hi Macsys Engineering

Please can you share the model and exact steps to reproduce the issue at our end?

If possible, please share a short video of the same to understand the problem better. Thank you!

Regards.

[info]

attached file and video showing no bend control.

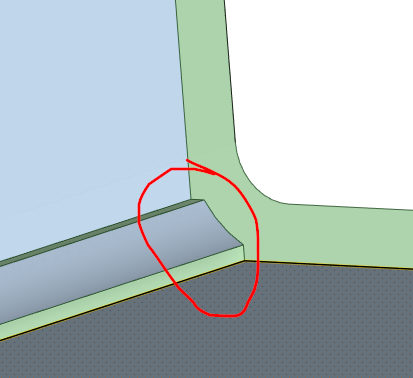

actually, making this video I encounter another issue. see picture

​ 🛈​ This post originally contained file attachments which have been removed in compliance with the updated ​ Ansys Learning Forum Terms & Conditions​

​

[Devendra Badgujar]

Macsys Engineering

Let me check and get back to you.

[Devendra Badgujar]

Hello Macsys Engineering

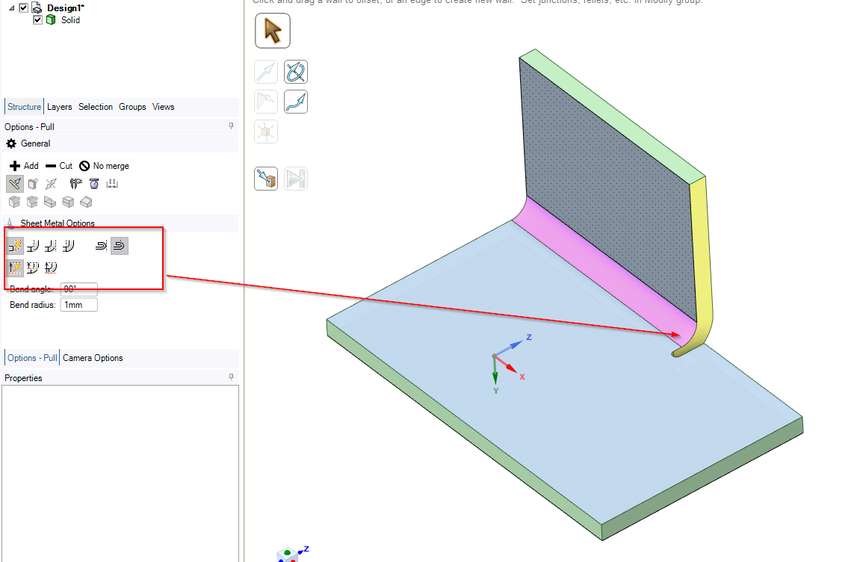

I tried your file at my end and the bend edge location will work before you create a bend while you are using pull tool for that Sheetmetal edge when bending. The bend options control where bend radii are created in relation to adjacent walls.

Please refer Pulling Sheet Metal Parts (ansys.com) for more information on this.

Also, the junction in your file is not a bend but a round. I have attached a video which explains how to convert that to Sheetmetal bend.

Regards.

​ 🛈​ This post originally contained file attachments which have been removed in compliance with the updated ​ Ansys Learning Forum Terms & Conditions​

​ ​

[info]

thanks you very much Devendra!
