Hi,

I'm currently trying to model this beam shown below in ANSYS APDL. I'm very new to the software so I'm still trying to get the hang of it and I need to learn it for my undergraduate studies.

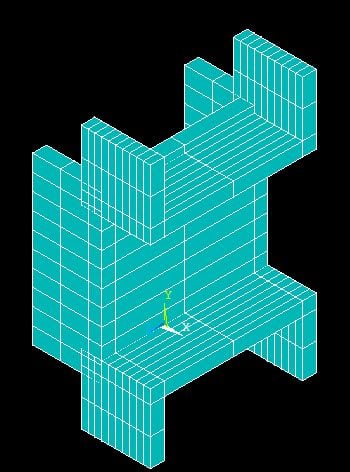

But the problem is, whenever I do try to model it on APDL, the structure looks like this:

Is there any way to orient it similar to the intended structure in the first image? Any help would be appreciated.

[cloudstrife12]

The code that I generated looks something like this, just for reference. Any help would be greatly appreciated.

/PREP7 ! Enter preprocessing phase
! Define keypoints
K, 1, 0.05, 0, 0
K, 2, 0, 0, 0
K, 3, 0.15, 0.06, 0 ! This keypoint is where the force, P, is
K, 4, 0, 0.12, 0
K, 5, 0.05, 0.12, 0
! Define lines
L, 1, 2
L, 2, 4
L, 4, 5
! Define elements
ET, 1, BEAM189
! Define cross-section
SECTYPE, 1, BEAM, CHAN
SECDATA, 0.05, 0.05, 0.12, 0.01, 0.01, 0.01
SECPLOT, 1 ! Plots the current cross-section
! Define material properties
MP, EX, 1, 200e9 ! Elastic modulus in Pa
MP, PRXY, 1, 0.3 ! Poisson's Ratio
! Mesh the beam
LESIZE, ALL, , ,10, 1, 1 ! specify divisions on unmeshed lines
LMESH, ALL ! Mesh all lines
FINISH ! Finish preprocessor phase



[peteroznewman]

The way it works is you have just one line between two points, a distance L apart.

The cross section is applied to that one line.

[cloudstrife12]

Thank you, I will give it a try. I also wanted to ask, when applying constraints, since at one end of the channel it is a fixed support, do I then just apply it to those two points you've mentioned? Much appreciated

[peteroznewman]

You apply the fixed support to one vertex.
