Hi everyone,

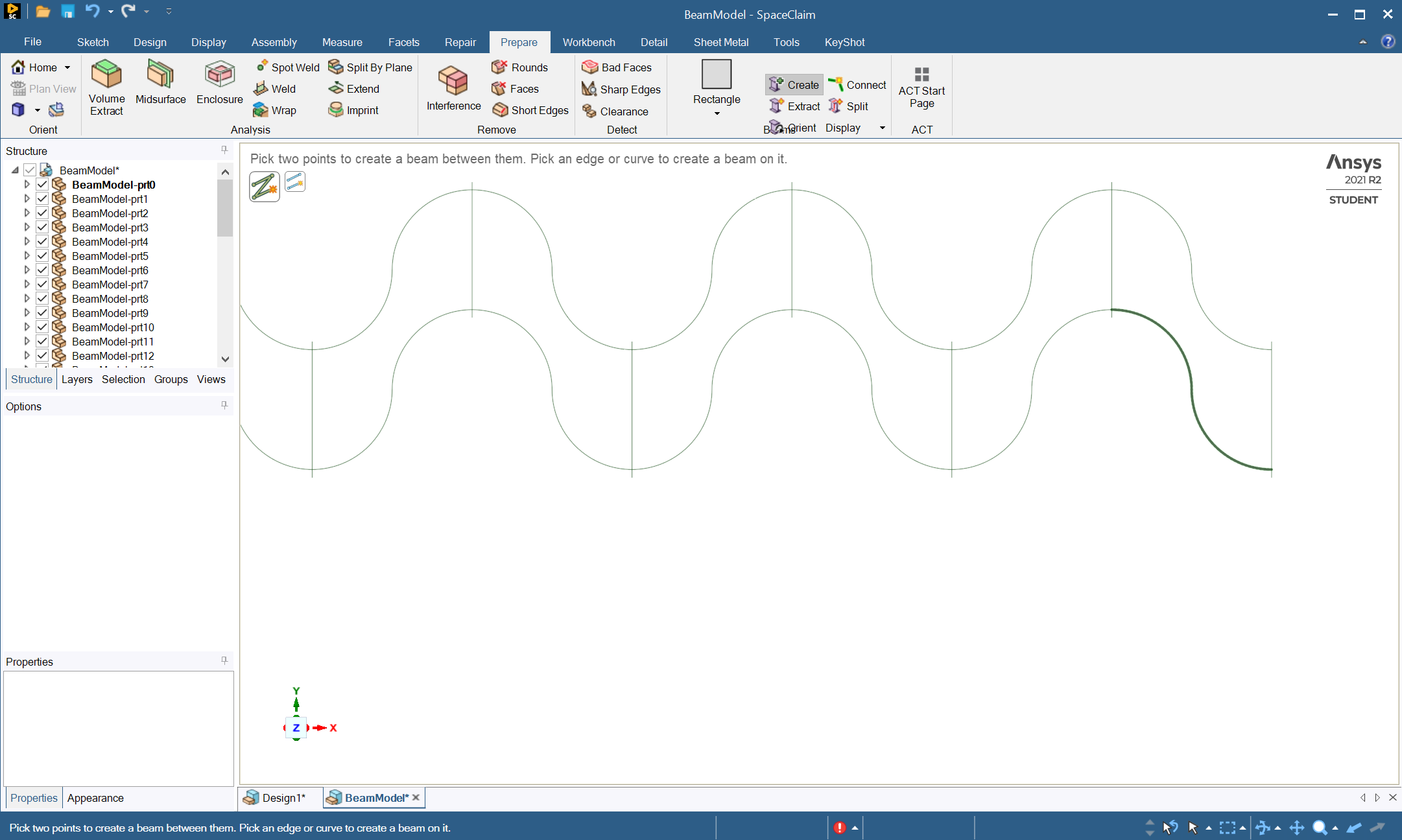

I have this geometry that I want to model using beams. It is possible to assign a rectangular profile to the curved segments? I've tried in SpaceClaim but it keeps telling me "Cannot assign a profile". If not possible, how can I model this object 1D?

Thanks in advance,

J

[peteroznewman]

What is the radius of curvature of the arcs?
What is the size of the profile you are trying to use on those arcs?
Use SpaceClaim to make a solid object by sweeping the profile along those arcs to confirm that the geometry can be swept along the path of those arcs.

[JaniraBei]

Thank you so much! I had issues in defining the profile, once I assigned the correct dimensions everything worked!
