AQWA PIC output

- March 26, 2024 at 6:40 am

  r.abbasi
  Subscriber

  Hi All,

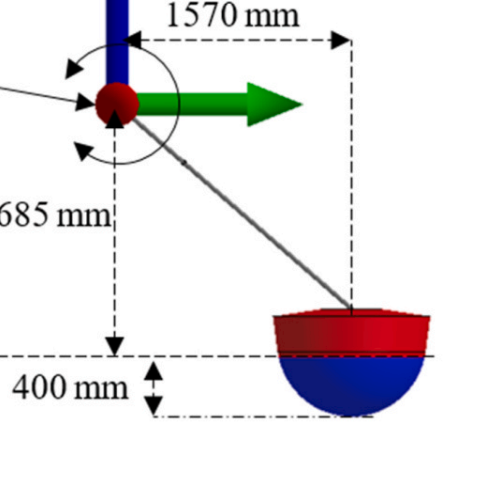

  I was wondering that how can I get these output pictures from AQWA which blue represent water line and ...
  thank you
- March 27, 2024 at 12:41 pm

  Shuangxing Du
  Ansys Employee

  The buoy can be defined by a hydrodynamic diffraction structure in the Hydrodynamic Diffraction analysis, and the joint(s) can be defined in the Hydrodynamic Response analysis.
- March 28, 2024 at 5:13 am

  r.abbasi
  Subscriber

  Thanks for your response.
  But maybe I have not asked my question clearly. I want to know how can I get this Graphic Picture of the model from AQWA.
- March 28, 2024 at 9:13 am

  Shuangxing Du
  Ansys Employee

  If you define this model in Aqwa-Workbench, the model can be displayed in the Graphical window in Workbench
  If your model is created by SpaceClaim, some model dimensions could be drawed.
  If you run Aqwa solver only for the time domain/equilibrium/frequency statistic analysis. The model can be displayed in Ags. To do it, please double click on (your Ansys installation folder)\aqwa\bin\winx64\Ags.exe -> File (to import the .res file of your analysis) -> Plots
