Hello, I have APDL contact macro. I want to implement the contact on Ansys Workbench.

C***********CONTACT ELEMENTS*********************



R,1,,,1,0.15,,,   !-2.2e-6,-1e-2

FRICTION=0.1

MP,MU,4,FRICTION



ET,2,169



ET,3,171

KEYOPT,3,1,0

KEYOPT,3,2,0

KEYOPT,3,3,0

KEYOPT,3,4,0

KEYOPT,3,5,0

KEYOPT,3,6,0

KEYOPT,3,7,0

KEYOPT,3,8,0

KEYOPT,3,9,1

KEYOPT,3,10,0

KEYOPT,3,11,0

KEYOPT,3,12,0





LSEL,,,,16,18,2

NSLL,,1

TYPE,2

MAT,4

REAL,1

esurf



allsel



lsel,,,,5

nsll,,1

type,3

esurf

allsel



nlgeom,on



/solu

cncheck,adjust

fini



/prep7

alls



/output,contact,dat

cncheck,detail,1

/output

alls

[suleyman41]

up

[peteroznewman]

Element Type 171 is a Legacy Element. Although this element is available for use in your analysis, ANSYS, Inc. recommends using the more general purpose CONTA172 element which can be used with or without midside nodes.

CONTA172 is for 2D analysis.  In Workbench, create your geometry on the XY plane then in Mechanical, under the Connections folder, Insert Manual Contact Region. select the Target edges and the Contact edges.  There are many other steps in Workbench and Mechanical to setup a 2D analysis. Search this site for examples.

You used Keyop(9) = 1 which says to ignore initial Gaps or Penetrations.  You do that in Mechanical under the Details of the Contact, in Geometric Modification, set Interface Treatment to Adjust to Touch.

[suleyman41]

Thank you for answer, but result is already false. In ANSYS APDL I have different result with Workbench. Also my APDL result is compatible with experiments.

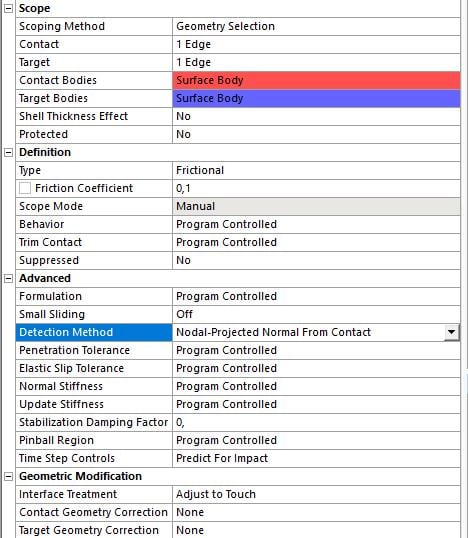

My workbench contact properties

[suleyman41]

I'm searching solution. Anyone knows it?
