[HsuHung]

I am ansys beginner and have some problem cannot solve.Hope every expert can give me suggestion.

I want to use different mesh method in different part so i go to spaceclaim split surface into 5 part.

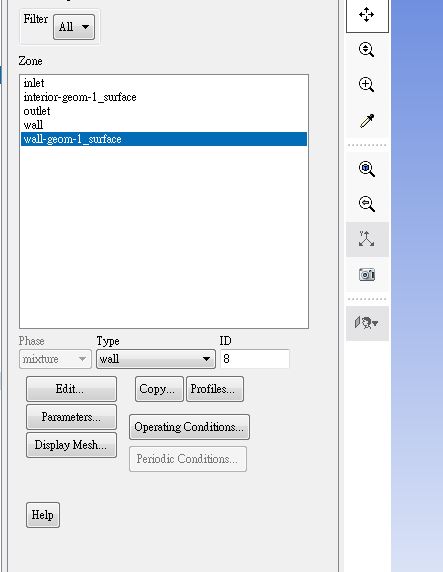

when go to fluent,the every surface contact line will become wall and i want to convert to interior but boundary condition type no interior can choose.

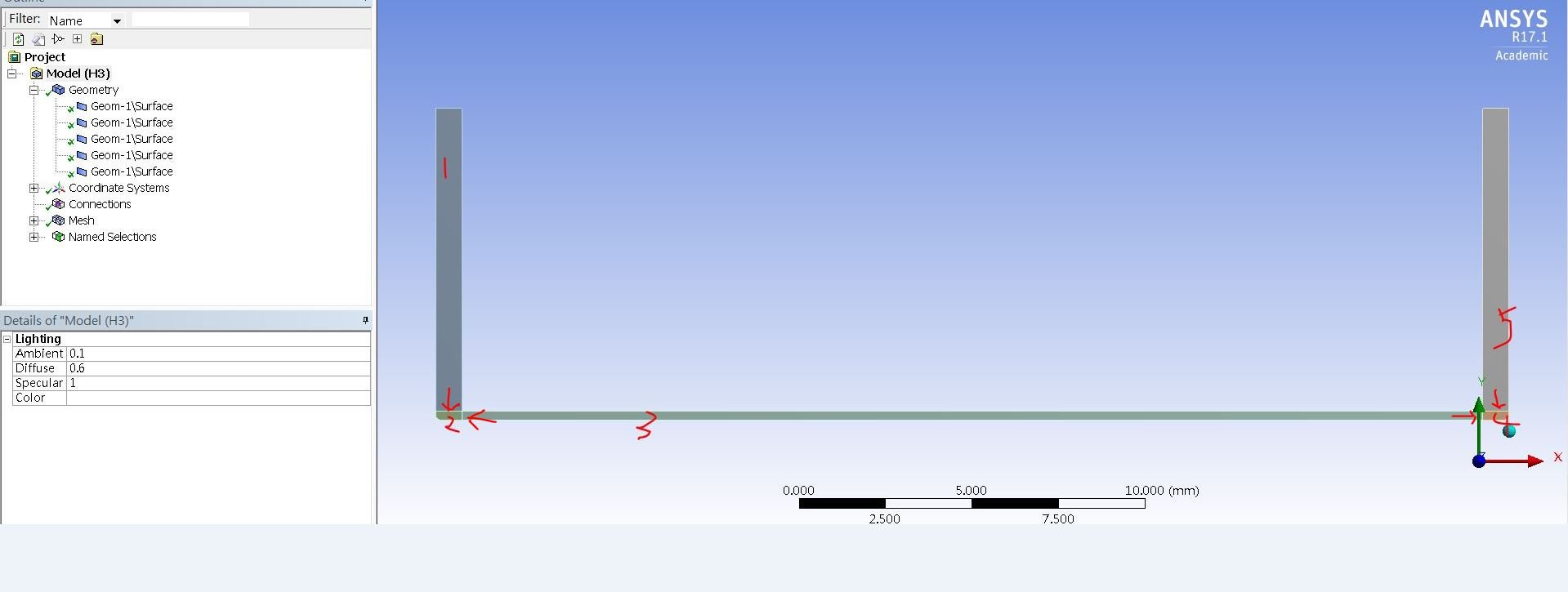

The red arrow edges that i want to change to interior edge

[Rob]

That's because they're not connected. Those walls are around the outside of the shapes and don't know about the neighbours.  Have a look at Share Topology in SpaceClaim.

[Keyur Kanade]

Please check following.

https://www.youtube.com/watch?v=IO4ZtwZdD2I

you will find many posts on this forum about share topology.

Regards,

Keyur



If this helps, please mark this post as 'Is Solution' to help others.

Guidelines on the Student Community

How to access ANSYS help links



[Keyur Kanade]

Moving to geometry category.

[HsuHung]

Thank very much.Your suggestion is very useful.

I already solve the problem.
