  3. Ansys SpaceClaim Detail – Annotation – Thread

Ansys SpaceClaim Detail – Annotation – Thread

TAGGED: ,

    • February 25, 2021 at 7:26 am
      jinson
      Subscriber

      how to display thread info in drawing sheet ?

    • February 25, 2021 at 10:30 am
      Charudatta Bandgar
      Subscriber

      Hello jinson

      Let me look into it and get back to you.

      Regards.

    • February 26, 2021 at 2:18 pm
      Charudatta Bandgar
      Subscriber

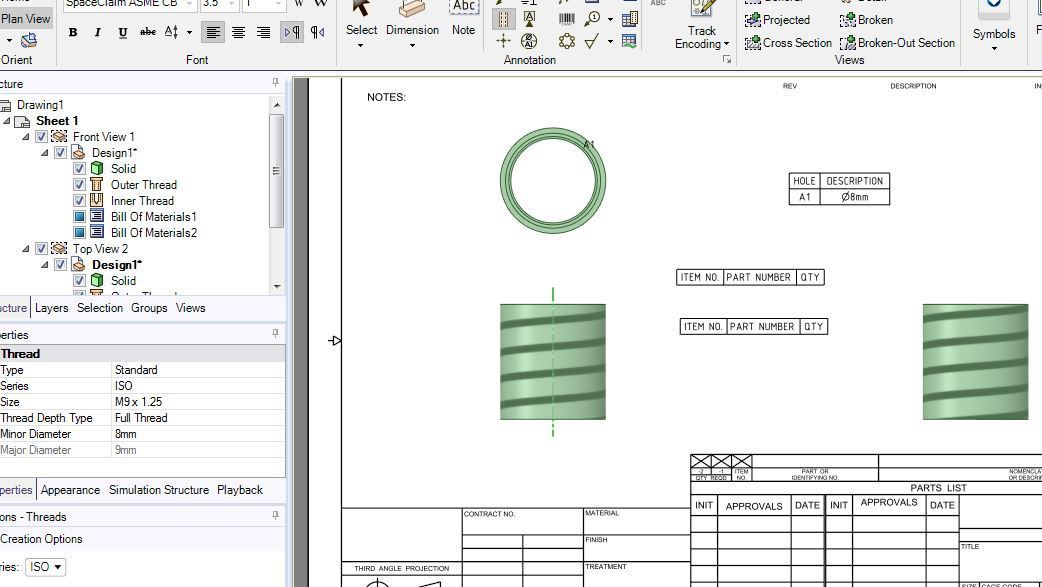

      Hello jinson Please refer to the video attached. While creating the standard hole make sure to check tapped. Let me know if you have any further questions.
      ? This post originally contained file attachments which have been removed in compliance with the updated Ansys Learning Forum Terms & Conditions
    • March 2, 2021 at 2:09 am
      jinson
      Subscriber

      hi, thanks for the reply

      How to get outer thread detail in drawing sheet?

Viewing 3 reply threads
  • The topic ‘Ansys SpaceClaim Detail – Annotation – Thread’ is closed to new replies.
