Hello, I have a problem creating a mesh in Ansys Fluent.

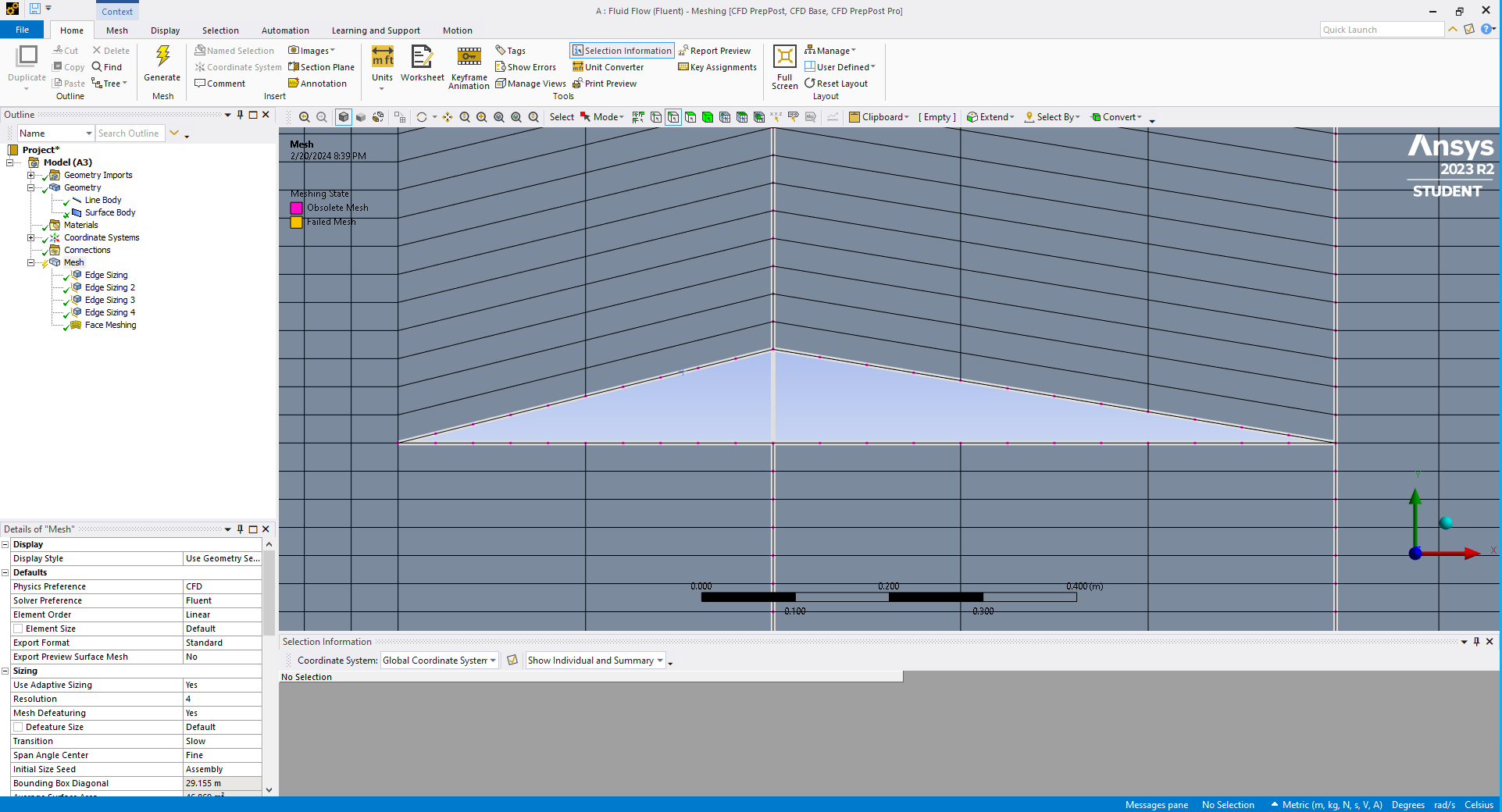

Each of the two central areas needs 10 vertical divisions. I entered 10 into the "Number of Divisions" and set it to "Behavior: hard". However, Ansys creates a maximum of 3 vertical divisions.

At the same time, it is noticeable that it still divides the surface of the geometry into 10 segments.

I understand that the question may sound rather stupid. However, I am just learning how to work with Ansys Fluent and will be grateful for any help.

[Keyur Kanade]

What global control you have given? What physics preference is set?

Insert image of edge sizing control.

Check with other geometries. Do you see similar behaviour?

Please check sizing related help at

https://ansyshelp.ansys.com/account/secured?returnurl=/Views/Secured/corp/v221/en/wb_msh/ds_Sizing_Group.html

Please check following videos

Ansys Meshing Sizing:
https://www.youtube.com/watch?v=w4q6q8nKF3U

Ansys Meshing: Meshing Methods:
https://www.youtube.com/watch?v=nEOC8rDnnRo



Regards,

Keyur
