ansys ACP. Stitching occurs during the design of composite materials.

[sux]

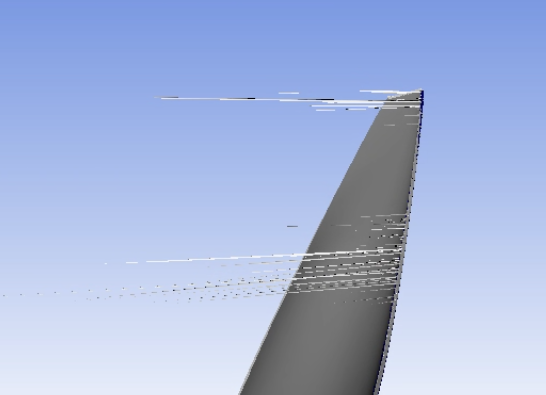

I am a student majoring in aerospace propeller design. When I used the surface model in ANSYS ACP to design the composite material structure, after the "Solid Models" step, protrusions would appear at the tip of the propeller. I want to know what I should do to solve this problem.

Thank you.

[Haifeng Niu]

You may consider the actions below to address the issue.

• Clean and refine the tip geometry and mesh.

• Use the "Cut Off Geometry" feature to trim unwanted protrusions.

• Adjust extrusion direction and boundary curves for solid model generation.

• Enable and review shape checking for solid models.

• Export boundary surfaces for further CAD-based modifications if necessary.

Also please refer to the guide/tips from Ansys documenation below.

https://ansyshelp.ansys.com/public/account/secured?returnurl=/Views/Secured/corp/v251/en/acp_ug/acp_solid-model.html

https://ansys13.ansys.com/KnowledgeArticles/Phase-2B/2055244/2055244.pdf#page=1
