[Cezary Ciesielski]

Hello,

I am in the process of modeling a wheel moving on a rail surface. I want to analyze the deflection of the rail under a wheel moving at different speeds.

I tried to do it in explicit dynamics and in transient structural but the results didn't look right.

The model consists of a beam placed on the ground (bonded contact) and a wheel placed on the beam (frictionless contact). The material of the wheel has a selected density so that, together with gravity, it acts on the beam with a force of 112.5 kN. The whole is fixed on the bottom plane of the ground.

In the results, I care about the amount of displacement of the beam under the moving wheel depending on the different speeds of this wheel.

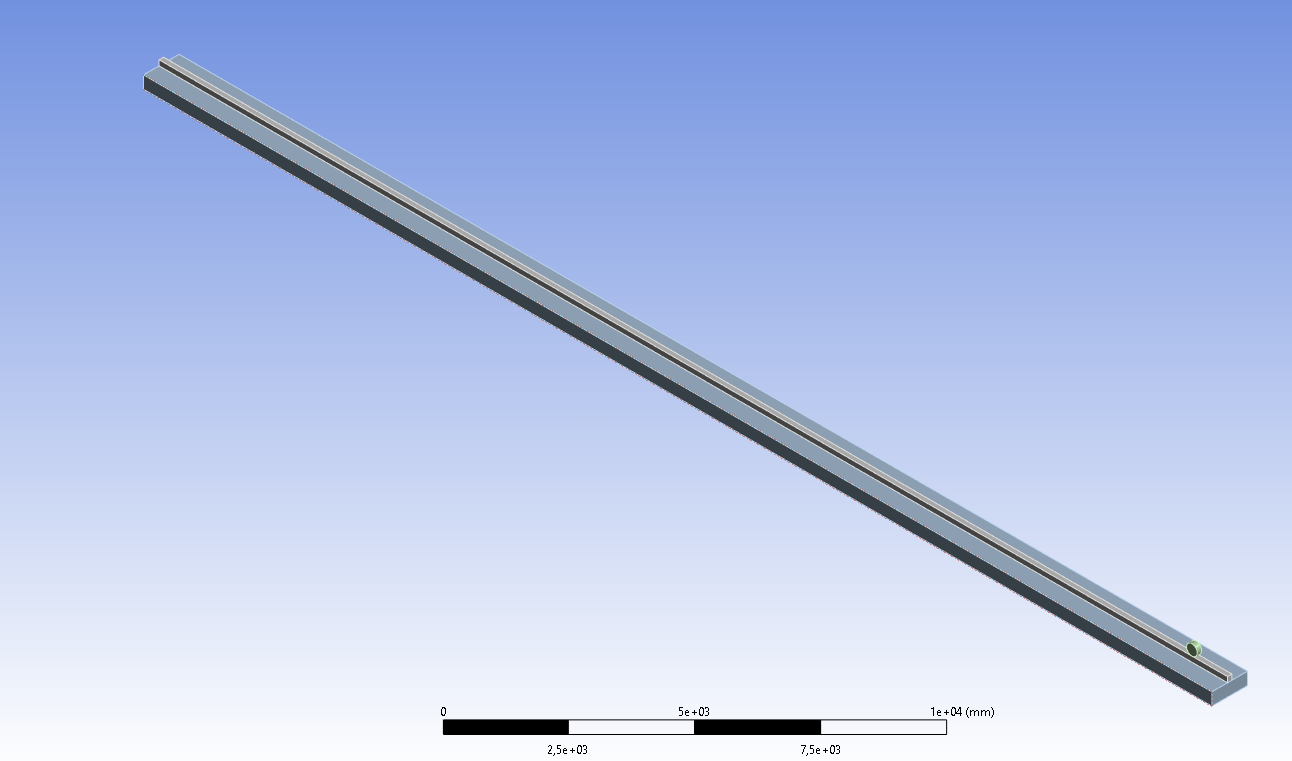

I have attached a photo of the model.

Which solver to choose and what to pay attention to when entering settings. Please help.

Thank you.

[Ashish Khemka]

Hi,



You can use a transient analysis. Define velocity along the direction of motion. That should be sufficient.



Regards,

Ashish Khemka
