Ansys Learning Forum › Forums › Discuss Simulation › Electronics › How to plot field overlay of X component of Mag_B? › Reply To: How to plot field overlay of X component of Mag_B?

February 2, 2022 at 11:18 am
Navya Chode
Ansys Employee

you can create a polyline as the circular path (OR any path you want) first -> use field calculator to create named expression Bx

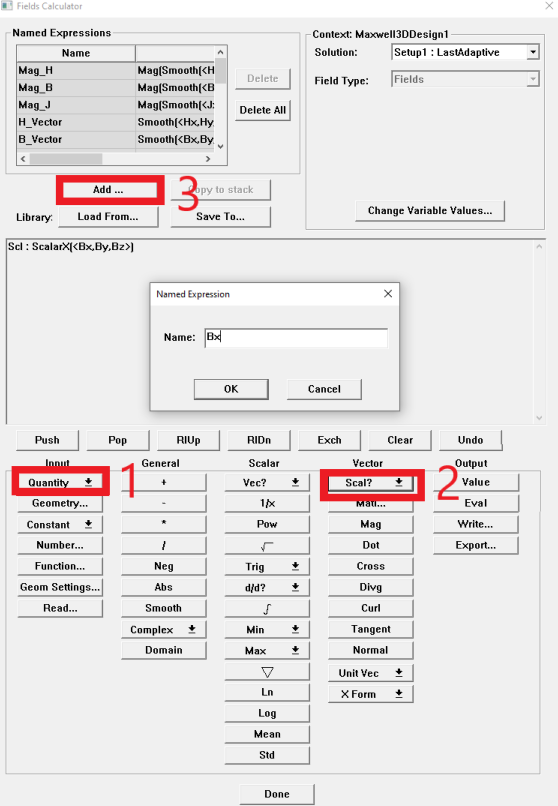

In field calculator, Input: Quantity->B
Vector: Scalar?->ScalarX
Add..->Type the name as "Bx"

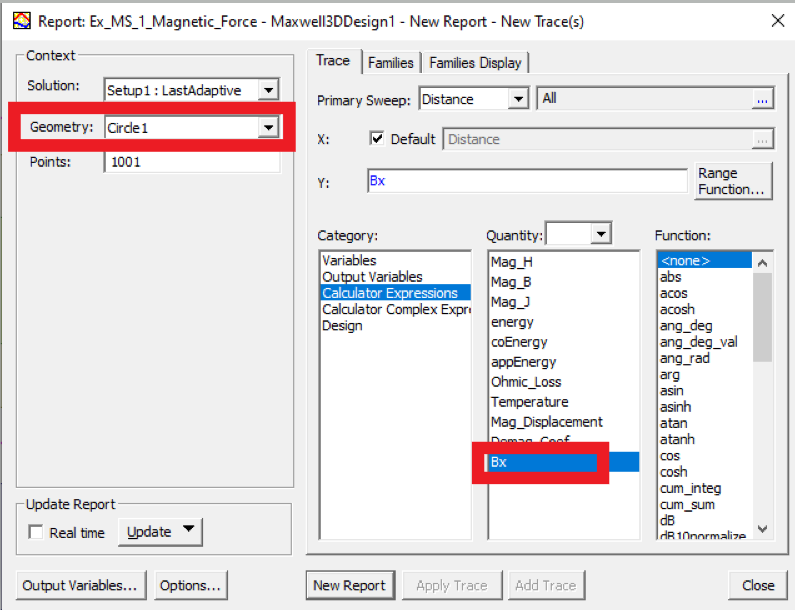

Create a field report-> select the circle(or the path you crated) in geometry ->add Bx from Calculator Expressions->New report
Regards Navya
