Co-simulate ANSYS Simplorer and ANSYS MAXWELL for 3-Ph PMSM motor

- April 23, 2021 at 2:41 am

  ranjanpal999
  Subscriber

  Hi,nI wish to build a vector controlled VFD in ANSYS Simplorer and make it drive a 3-Ph PMSM motor modeled in MAXWELL.nI could find links to some research papers where this has been achieved:nhttps://iopscience.iop.org/article/10.1088/1757-899X/872/1/012047/pdfnhttps://core.ac.uk/download/pdf/188803398.pdfnI have my 3-Ph PMSM motor model ready in MAXWELL.nHowever, I am still trying to learn how to model a VFD in Simplorer and co-simulate that with MAXWELL.nSince I am just a beginner in this area, can somebody please let me know of some documentation or links wherein we can learn step-by-step procedure to model a VFD and and its co-simulation with MAXWELL ?n
- April 28, 2021 at 2:18 pm

  DELI
  Ansys Employee

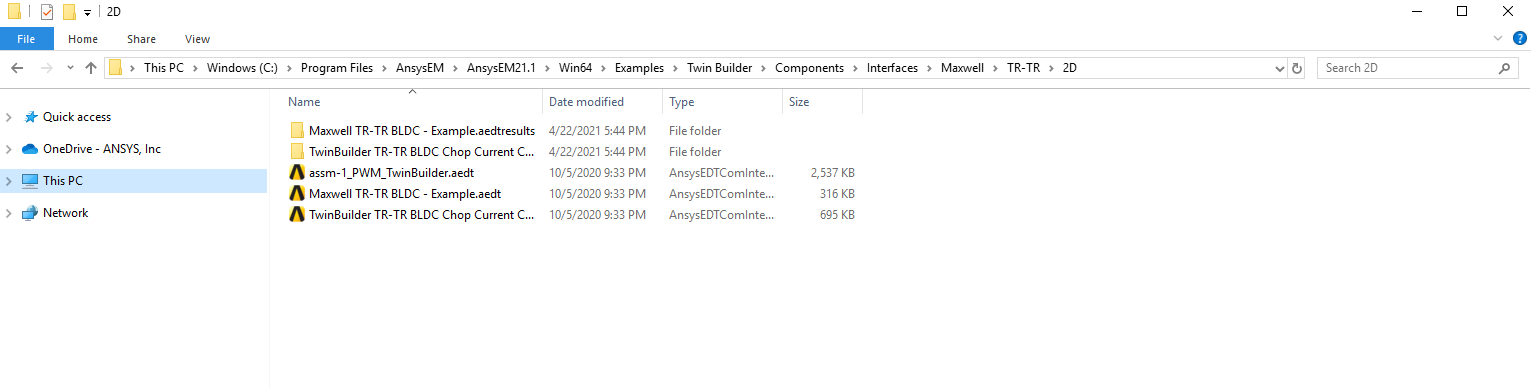

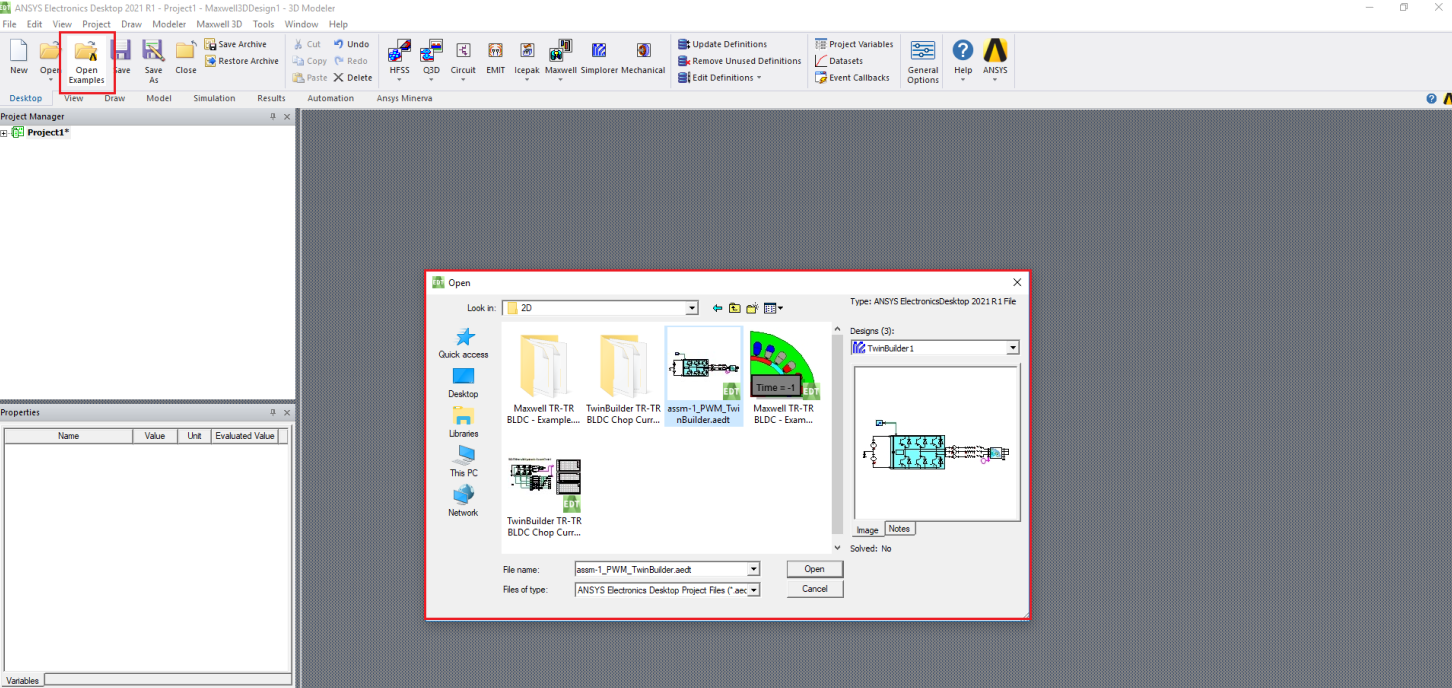

  There is a Maxwell Simplorer cosimulaiton example come with installation. You can find it under your installation folder, or use "open example" in Ansys Electronics Desktop
- May 14, 2021 at 9:43 am

  ranjanpal999
  Subscriber

  Thank you so much deli for your suggestions.
