A prism control was detected outside of workflow, it is not recommended.

How manage such warning?

I dont understand what software wanna tell

[Keyur Kanade]

Which tool you are using?

[Keyur Kanade]

If it is Fluent Meshing, then there could be prism controls you have defined outside watertight workflow.
If possible start from scratch in new session by importing geometry.
Regards Keyur
How to access Ansys Online Help Document
Guidelines on the Student Community

[tumulpurwar]

Dear keyur

We are having some doubts between workflow of Fault tolerant meshing in Ansys fluent software.
As we have license of 2019 R2 Software, and I saw that 2020 version software, have some more improvement in Fault tolerant meshing especially under "Boundary layer" tab
We are currently using it for our calculation, and I don't see these same tools in our 2019 R2 version.

I am attaching snapshotof 2019 R2 & 2020 Ansys Fluent , Fault tolerant meshing workflows, please look the differences in both versions under Boundary layer tab.

[Keyur Kanade]

As Ansys Staff, we can not download attachments. Please upload images using upload image functionality.
Please use latest version 2022R1
Download Ansys Student | Workbench-based Simulation Tools
Regards Keyur
How to access Ansys Online Help Document
Guidelines on the Student Community

[tumulpurwar]

ok i am re uploading the photos, we dont have latest version,we are paying for 2019 R2

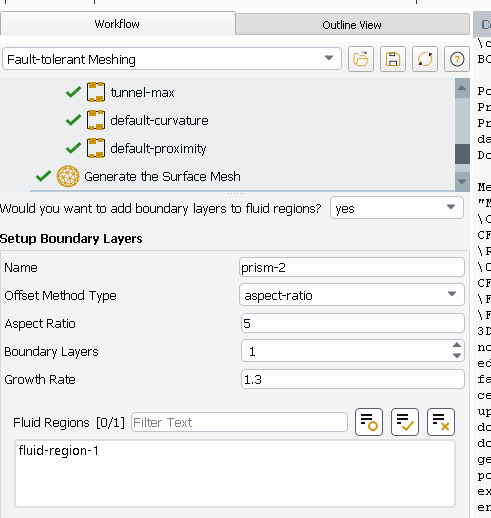

first photo is of 2019 R2 and second one from 2020,i dont see, in 2019 version under boundary layer tab, options like
-Add in
-Post improvement method
-Grown as

These above options are very important in case of external fow, which i am doing...Can you tell if these options are not in 2019 R2?

[tumulpurwar]

Hi keyur

Can you please answer?

Thanks

[Keyur Kanade]

Please use latest version 2022R1 which has many more enhancements done for workflow.
2019R2 is very old build.
Regards Keyur
How to access Ansys Online Help Document
Guidelines on the Student Community

[tumulpurwar]

Ok.. Thanks
Hello keyur
For old question of this post "A prism control was detected outside of workflow"
You told " If possible start from scratch in new session by importing geometry."
I recreate from zero everything, but still it gives same warning.
Can you tell what's reason?

[Keyur Kanade]

Go to Outline view and right click on Model and delete any size and prism control if any.
Request you to get latest version. That old version is not supported anymore.
Regards Keyur
