Use Solid185 with reduced intergration (from Workbench)

[ThomasDD]

For a specific postprocessor, we need elements with reduced integration. In Ansys Classic no problem:

ET,1,SOLID185
KEYOPT,1,2,1

But this not work in Ansys Workbench. If I add a command block to my geometry in that way (mesh option linear):

KEYOPT,typeids(1),2,1

and I open the RST with Ansys Classic an list the element types, I see:

ELEMENT TYPE        1 IS SOLID185     3-D 8-NODE STRUCTURAL SOLID
 KEYOPT( 1- 6)=        0      3      0        0      0      0
 KEYOPT( 7-12)=        0      0      0        0      0      0
 KEYOPT(13-18)=        0      0      0        0      0      0

Keyopt 2 is set to 3 (= Simplified enhanced strain formulation).

How can I solve this problem? Thanks!

[ErKo]

Do this natively:

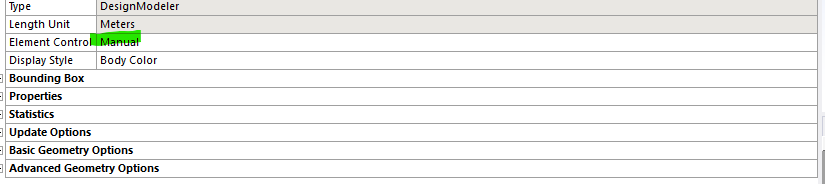

Element control manual

(Then set reduced)

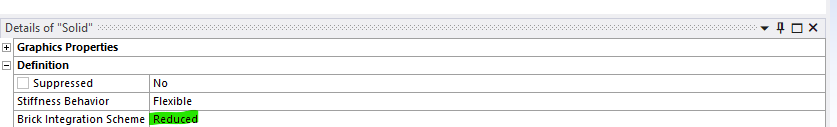

With that we get all good results and reduced int.

All the best



Erik

[ThomasDD]

Thank you!! Works!

Two thoughts that come to mind:
- It’s a GUI disaster to hide element settings within the geometry branch (why aren’t there corresponding settings on the mesh node in the tree?)
- Any idea why the APDL command didn't work in the first post? Does KEYOPT need to be called before generating the elements?



[ErKo]

Appreciate that.
Can see that can be the case perhaps.

Not sure why (WB writes a lot of commands that can override the keyopt command).

Good it helps.

All the best

Erko
