Unstable Torque Output in Maxwell 2D

    • caldero3
      Subscriber
      I setup the Maxwell 2D Model and when analyzing the model the output of the torque is very unstable and I don't know how to fix it.

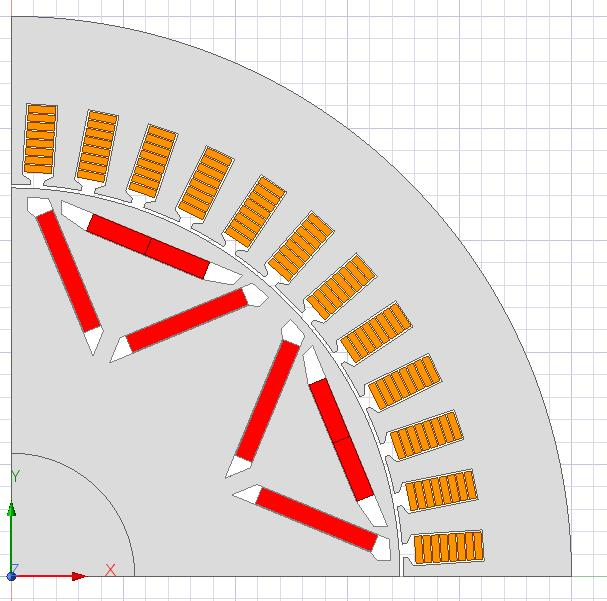

      I am using a two-pole section when importing the geometry (North and South) but can't get a reasonably stable torque output.
      undefined

      Counter Clockwise, each phase has two slots and the sequence is: A+, C-, B+, A-, C+, B-

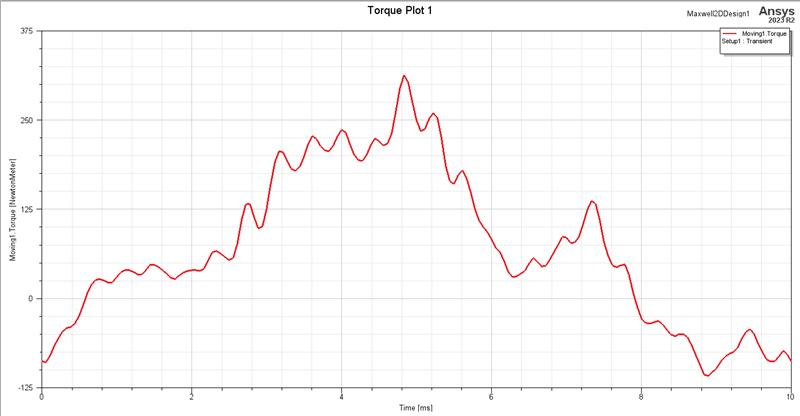

      Torque Output looks like this:
      undefined

      The flux density in the air gap looks like this:
      undefined
      I have tried changing phase sequence, coil exitation direction and starting angle but it doesn't seem to be making it any more stable.
      Any help would be appreciated.
