Sectional view in Rocky

[acheruvu]

Hello, I am trying to run a simulation of container in Rocky and want to get a cross sectional view of the container to understand more on how particles are moving. For this I tried creating a plane under user processes but it doesn't hide the other half. I even tried creating a cube but even this has same result. I am enabling transperancy but it is not helping me in completeley make the other particles disappear. If anyone has any leads on this, please help!

[Jackson Gomes]

Hi acheruvu.

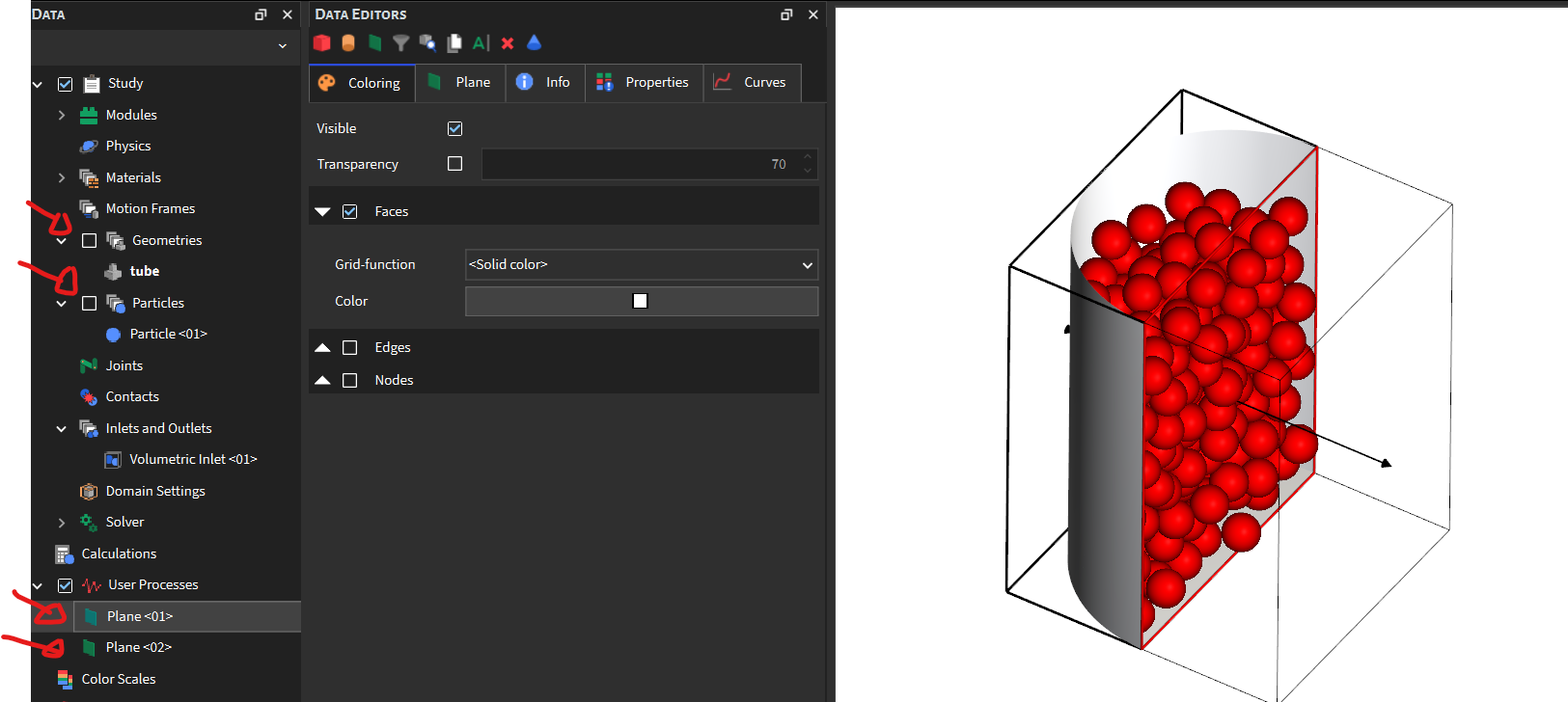

• Create two Section Planes: One for particles and one for the geometry
• In the coloring tab, configure each plane to display only the desired cross-section
• Hide the original entities (particle, geometry) from the 3D view (as shown in the image below)

 This way, only the sliced view is rendered.

Hope this helps!

If you'd like to explore more learning materials about Rocky software, you can find them here: https://innovationspace.ansys.com/ais-rocky/



Warm Regards,

Jackson



[acheruvu]

Thank you Jackson, that worked!
