Custom structure in Lumerical FDTD

    • gichuru7873
      Subscriber

      Hello, I want to create an elliptical ring(3D) and I believe I can only create the structure from the structure group or import it.Is there an example code I can build from or one for an elliptical ring?

    • Kirill
      Ansys Employee

      This topic has been moved to the Photonics forum. Thank you!

    • Kirill
      Ansys Employee

      Dear Subscriber,

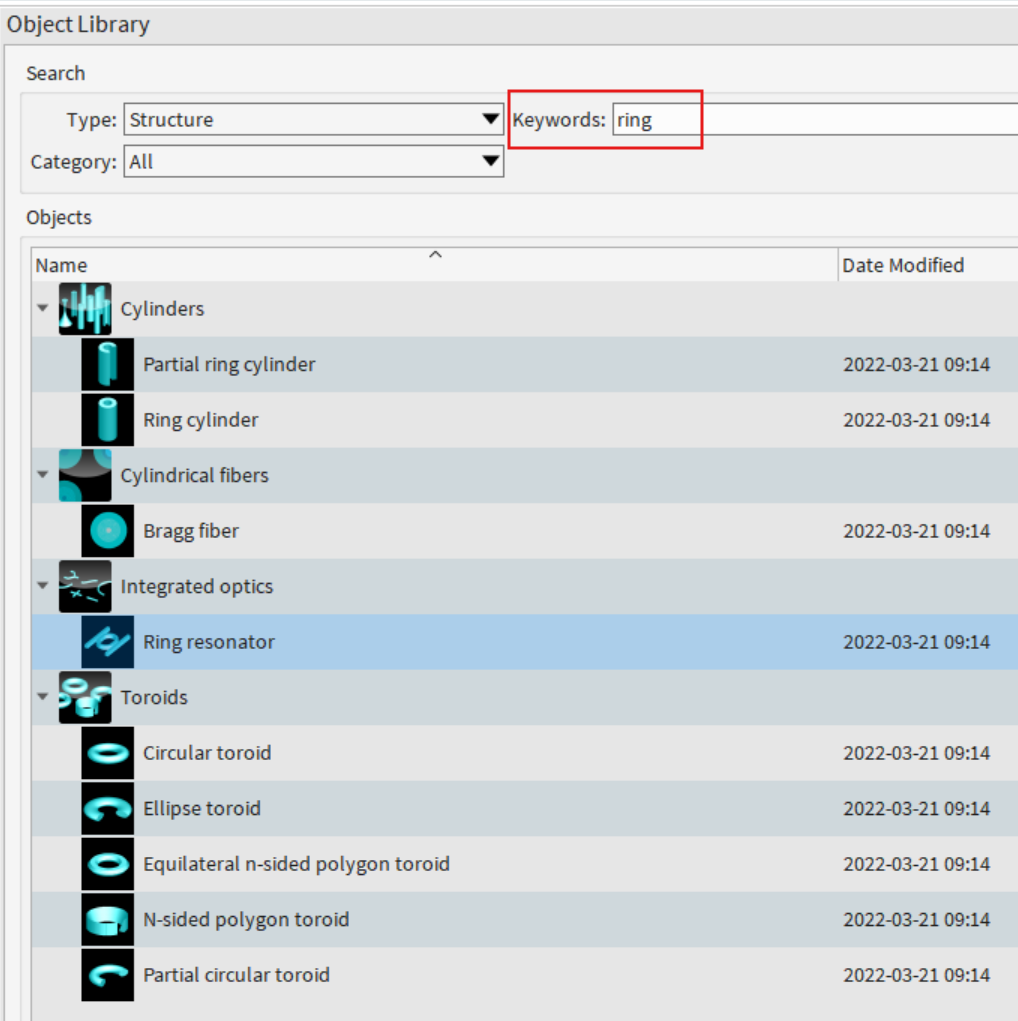

      Please search for 'ring' in the Object Library. There are several options that you may find helpful.
      Also, the Waveguide - Simulation Object provides flexibility to define various shapes.

      Best regards,
      Kirill

    • gichuru7873
      Subscriber

      Thank you for the reply Kirill. I did check the options in the object libary. My hope was there was a way I could modify the ring cylinder into an ellipse since the cylinder ring geometry is close to what I want for my structure, I only need to make it an ellipse.

    • Kirill
      Ansys Employee

      Dear Subscriber,

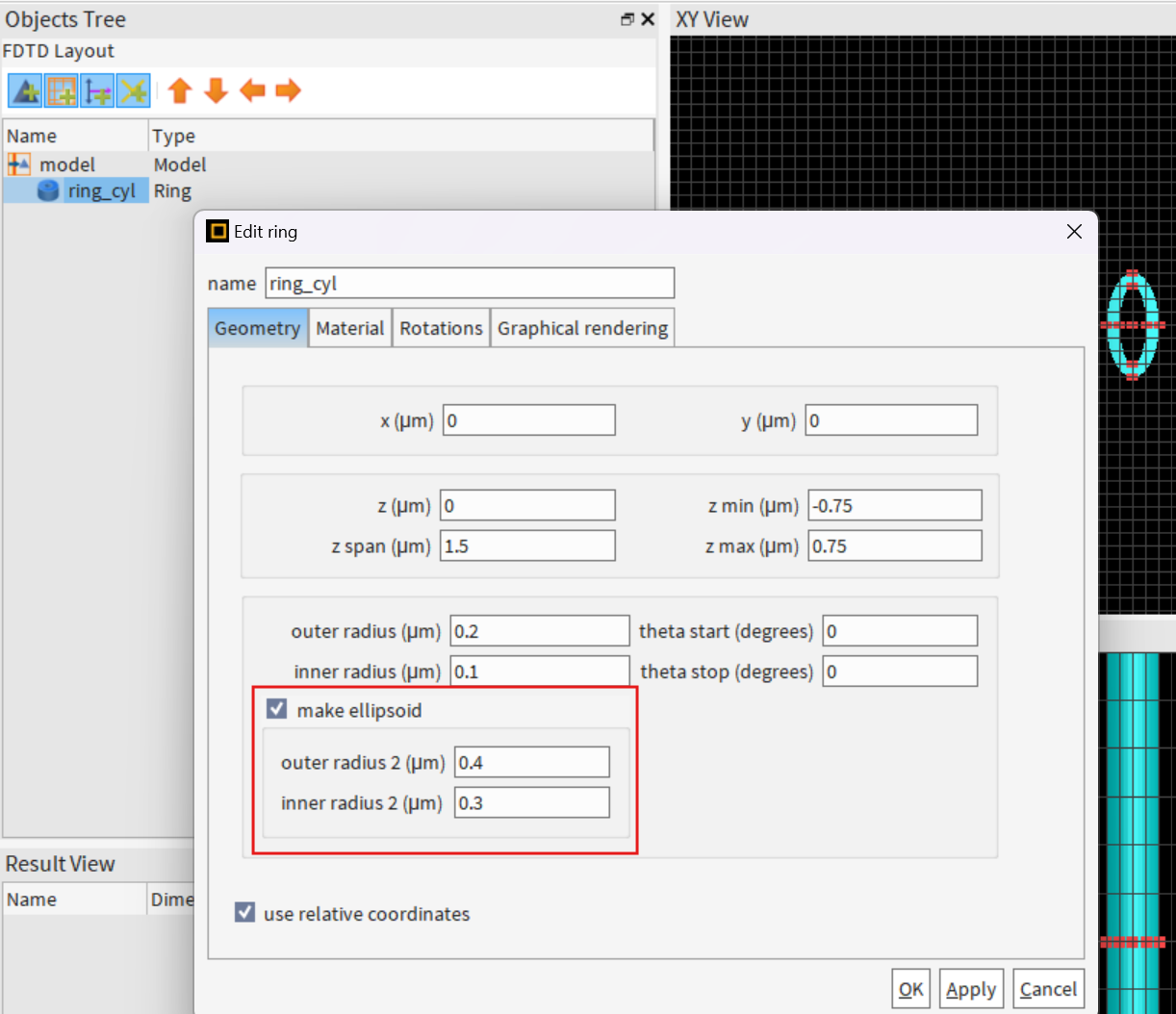

      Did you check the settings for the ring cylinder? It has a 'make ellipsoid' option.

      Best regards,
      Kirill

    • gichuru7873
      Subscriber

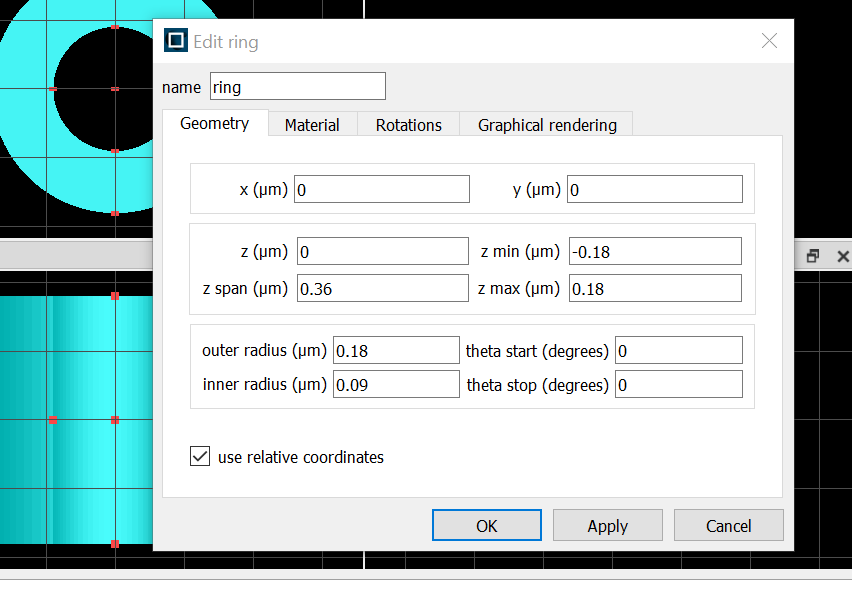

      Yes I have,


      unfortunately the version that I have access to does not have that option on the geometry settings

    • Kirill
      Ansys Employee

      Dear Subscriber,

      Which version are you using?

      Best regards,
      Kirill
