I want to study electric field across the geometry when applying 42V at 200kHz.

I have the following questions for assigning boundary and excitation.

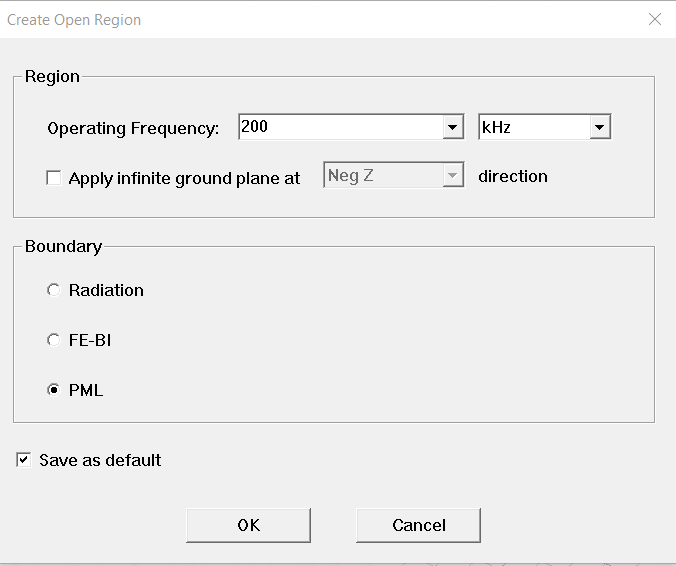

1. For PML, does the minimum radiating distance have to be equaled lambda/4? ie: can it be smaller? My entire geometry is very small, approximately < 3cm. The default value is 37500cm.
2. I want to add the voltage source, but there is no place to input the value. I can't change the voltage values in the properties section as well.

I'm reading Ansys HFSS - Getting started materials from Ansys Hub. If there is any recommended HFSS tutorial video, please let me know. Thank you.

[Chinmay T]

PMLBoundaryshould be placed at leastlambda/8 distance from the radiating object.You can also useFE-BIboundary for keeping radiation box closer thanPML boundary.

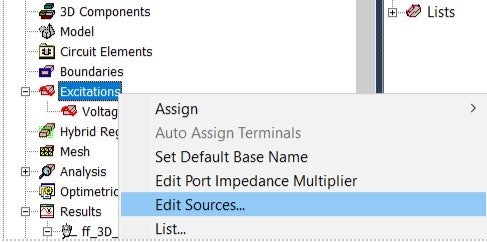

You can scale the voltagesourceby right mouse clicking on excitations and select edit sources.

Please go throughÔÇ£assigning PML boundariesÔÇØandÔÇ£scalingsourcesfor HFSSÔÇØsectionsfromtheHFSS help document for detailed information.
Please go through our course available in AIC channel for video tutorials -Electronics Engineering Courses | Ansys Innovation Courses
You can also browse the videos available on ouryoutubechannelshttps://www.youtube.com/user/ANSYSHowToVideosandhttps://www.youtube.com/c/AnsysLearning
Thank you.

[ha_nguyen3]

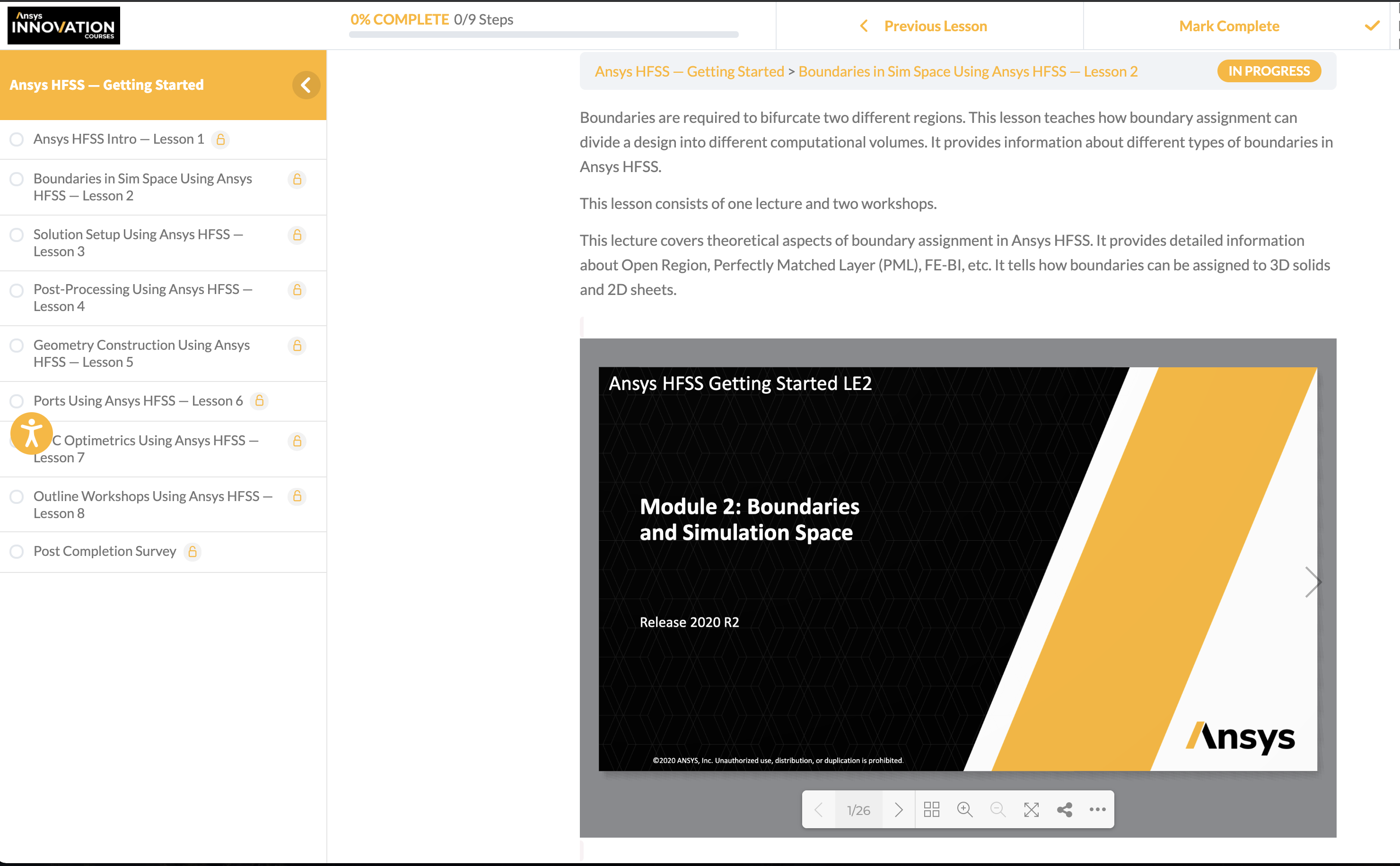

Where I can find the videos on AIC? Whether I enroll in the course or not, I can only access the pdf. files. Thank you.

[ha_nguyen3]

[Chinmay T]

As of nowonly PDF version is available for getting startedcourses.If interested you can go through other availablecourses for video tutorials.
Thank you

[ha_nguyen3]

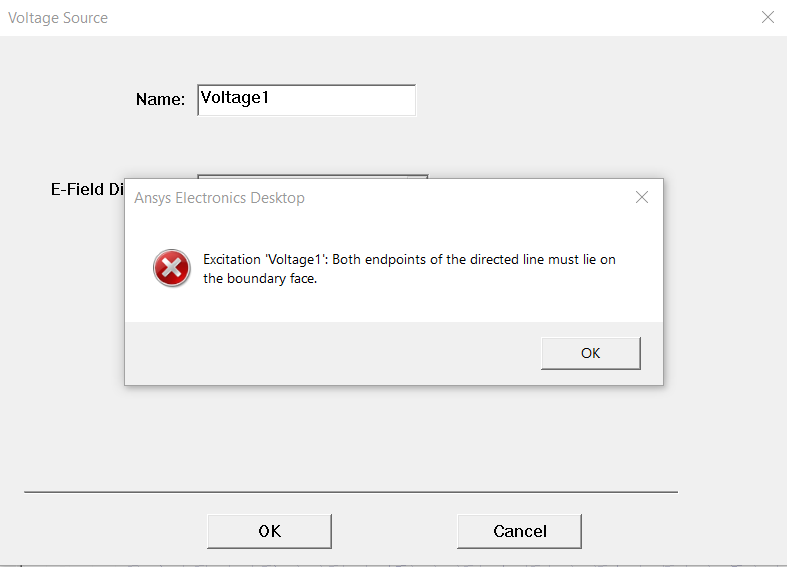

I have additional questions for adding the voltage source. I want to learn about E-field across the geometry. Can the directed line be perpendicular to the face (in y direction) that I will apply the voltage on? if not, how I should assign this line? It seems like the directed line can only go along the x- and z-direction.
