Prerequisites for Building Interactive HMI

Overview

This course presents a step-by-step summary to deploy a SCADE Display application on Linux hardware (Raspberry Pi) and how to integrate it with SCADE Suite code.

Tools in Focus

Ansys SCADE Display (version 2023 R1)
Ansys SCADE Suite (version 2023 R1)

Hardware in Use

• Target:
  • Raspberry Pi Model 3 B+
  • Raspbian GNU / Linux 9 (stretch) OS
  • Linux 4.14.79-v7+
  • IMU Sensor MPU6050
• Host:
  • Windows 10

Components/Hardware Needed

1. Raspberry Pi board
2. A touch screen display that connects over DSI with Raspberry Pi
3. Six-axis IMU sensor (MPU 6050)
4. Mouse, keyboard, and charger
5. Connecting wires

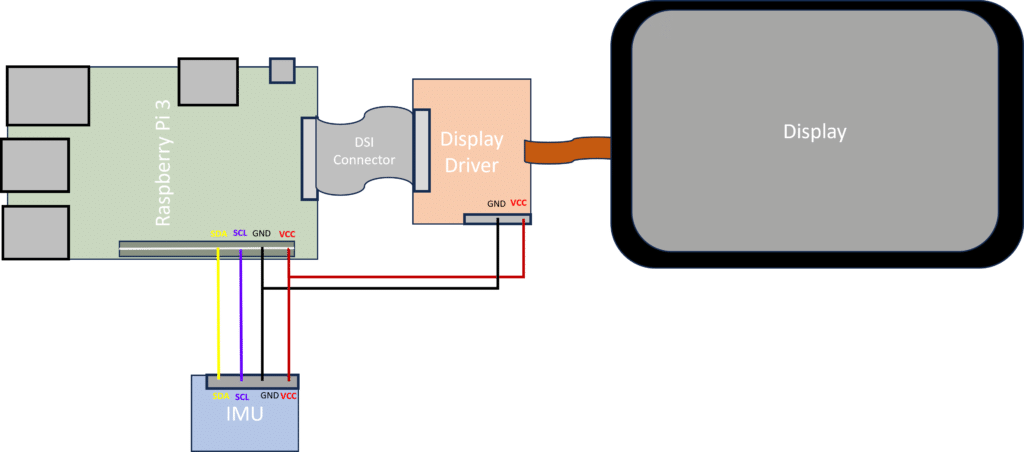

Schematic Diagram

Figure A. Schematic diagram for the Raspberry Pi with the IMU and display screen

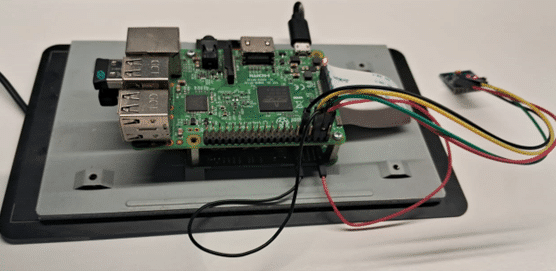

Connection Diagram

Figure B. Connection diagram of the Raspberry Pi, IMU, and display screen assembly
