What is In, Ip, and Id in charge solver results of photodiode simulation?

- February 24, 2022 at 6:01 am

  Mariah Ha
  Subscriber

  Hi,

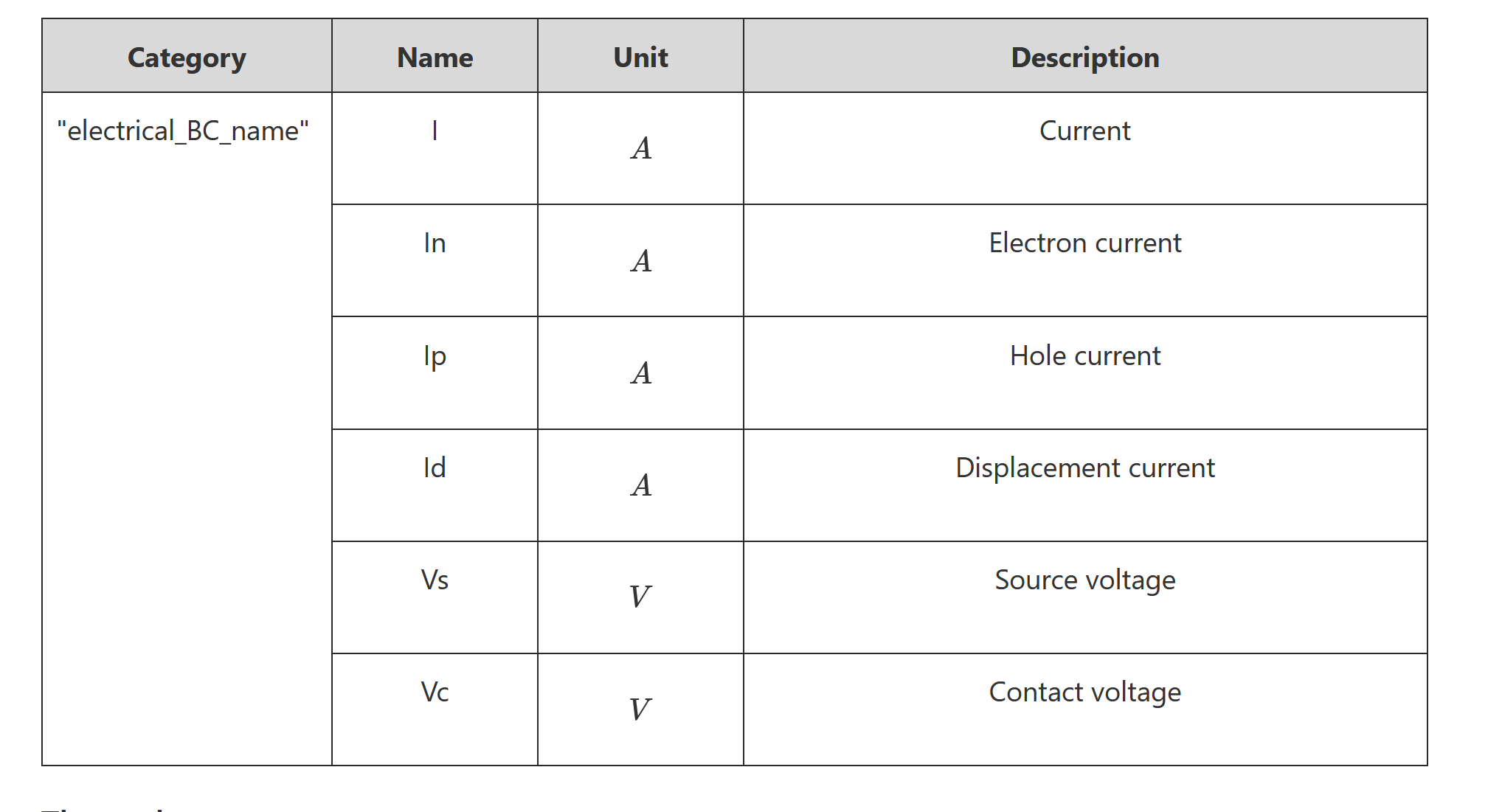

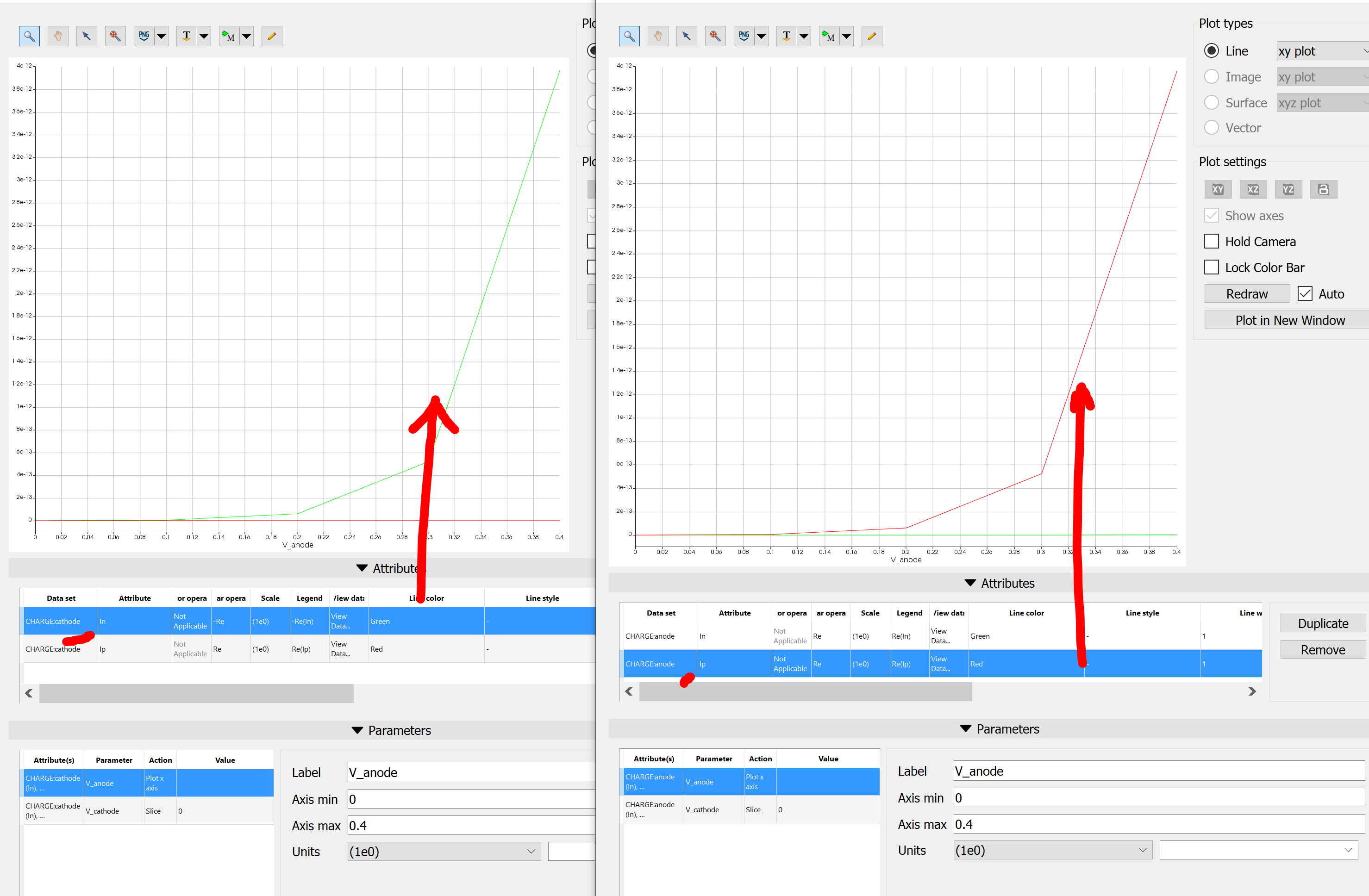

  Can anyone please explain what is In, Ip and Id in charge solver? The "I" results is obviously the total current of the structure. "In" is normally the electron current, but if so, why the curve is different when I plot the result "In" from the anode , it is different from "In" plotted from the cathode side. Same for "Ip" and "Id".
  tahnk you.
- February 24, 2022 at 8:33 pm

  Guilin Sun
  Ansys Employee

  Thank you for raising this question. You understanding is correct:
  After discussion with a colleague, the subscripts n and p are not swapped. This is because the cathode collects electrons and the anode collect holes. Their absolute values are the same:
- February 25, 2022 at 4:03 am

  Mariah Ha
  Subscriber

  Thank you very much for your answer I appreciate. I just have one concern regarding the total current "I" . There is an "I" in the cathode and an "I" in the anode which are not the same when I plot them which means there are different and they don't refer for the total current in the whole photodiode. If that's right , then how would I calculate the total current in the photodiode, is it the sum of "I" cathode and "I" anode?
- February 25, 2022 at 5:56 pm

  Guilin Sun
  Ansys Employee

  How large the difference is? Since this is discrete method, they may not be exactly the same. I tested this case: GaAs pin diode - Lumerical Support
  I would suggest that you do a mesh convergence test.
