Solution visualization: plotting two results

- June 9, 2019 at 9:07 pm

  javieraruz
  Subscriber

  Hello all!

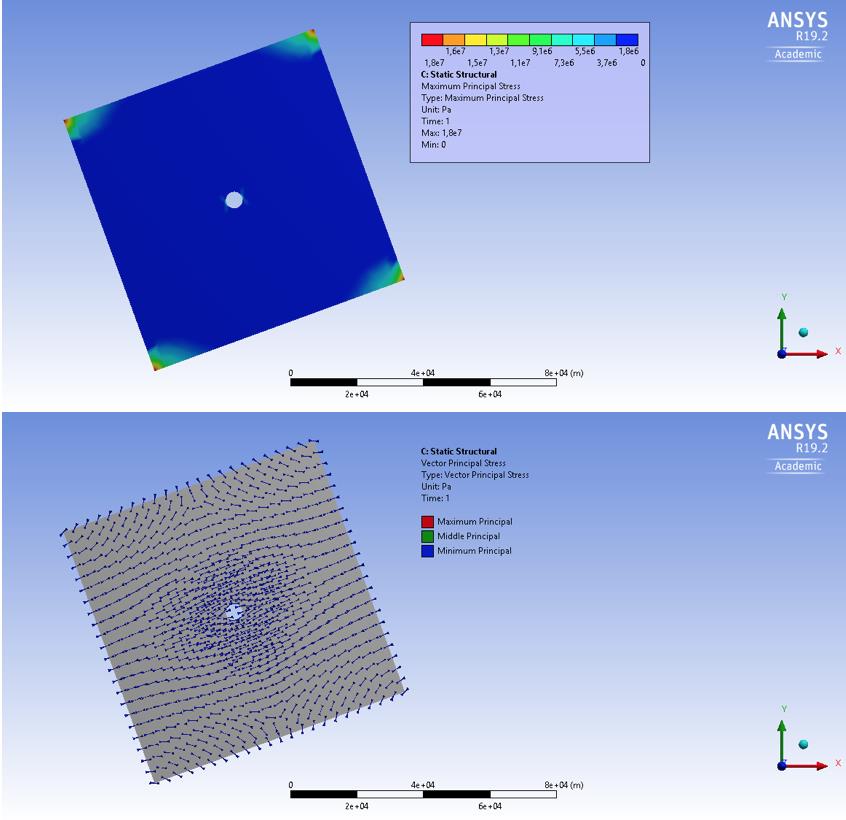

  I am new to Ansys Workbench and am running some models. I am particularly interested in obtaining maximum principal stress magnitude (as a contour plot) and minimum vector principal stress orientation (vector plot), and visualizing the results in one plot rather than as two separate solutions. Is there any way to combine these two solutions for visualization either in workbench model or in another post processing software? Attached is an image of the two solutions I want in just one single image.

  Thanks in advance for any comments and help!
- June 10, 2019 at 10:10 am

  Rob
  Forum Moderator

  You can plot multiple layers/surfaces/results onto the one geometry in CFD Post. CFD Post will also read Mech results. However, you do need to be careful with the legends to avoid confusion. I'd suggest creating the images separately and then adding to your report next to each other.
- August 7, 2019 at 4:25 pm

  javieraruz
  Subscriber

  Thank you for your help! Unfortunately CFD Post is not working for me. Will check if it's a license problem.

  And again, thanks for the reply.
